Description

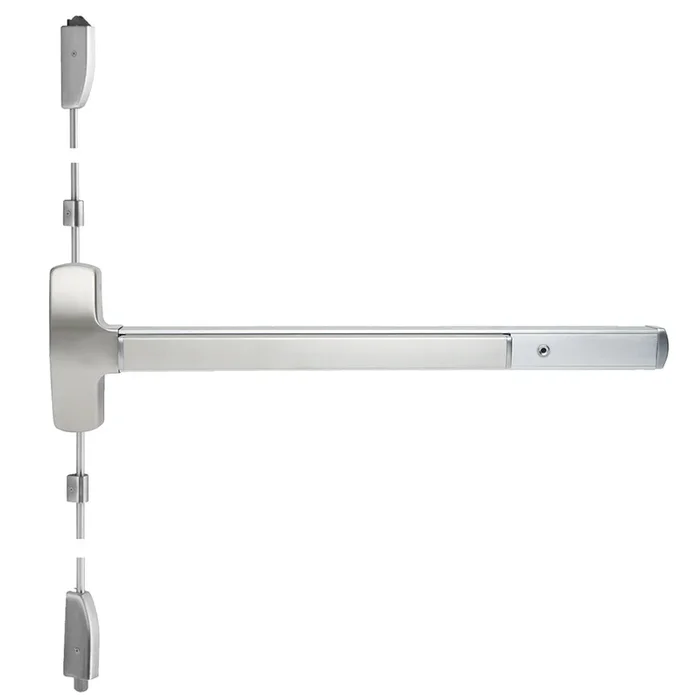

Falcon Lock 25-V-L-D 3 28 RHR SVR Classroom Exit Device, 3′
Falcon Lock 25-V-L-D 3 28 RHR SVR Exit Device is a Grade 1 surface vertical rod exit bar designed for high-traffic environments. With a robust construction and a wide stile pushpad, this 36″ device accommodates doors up to 84″ in height, ensuring both durability and functionality. The classroom function adds an extra layer of security, making it ideal for educational institutions, offices, churches, retail spaces, and healthcare facilities. The Falcon 25-V Series features patented deadlocking technology and hex key dogging for enhanced security. Its sleek touch bar design not only provides an attractive aesthetic but also facilitates easy operation in emergency situations. This model is available in a satin aluminum clear anodized finish, ensuring it blends seamlessly with various architectural styles. Designed for versatility, the Falcon exit device is suitable for both interior and exterior applications, whether in new constructions or retrofits. The wide range of features, including options for electrification and panic functions, allows for tailored solutions to meet specific needs. With a minimum stile size of 3-1/2″ and compatibility with wood or metal doors, this exit device stands as a smart choice for any building design.
SVR Exit Device, Classroom 3′
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Device, 84″ Door Height, Classroom Function, Dane Lever Trim, Hex Key Dogging, Satin Aluminum Clear Anodized Finish, Right Hand Reverse
High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.
Architectural wide-stile push pad exit devices providing quality and durability at an affordable price.
A host of features makes this a smart solution, like a choice of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined styling and a choice of wide-stile device applications means a smart solution for your building design, as well as its use.
Features:
- Maximum flexibility in a variety of applications
- Wide range of features and options
- Patent pending deadlocking technology
Applications:
- Frequent traffic
- Offices, churches, hospitality, retail, education, healthcare
- Interior, exterior, new construction, retro-fit
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3-2001
Base Material: Aluminum
Commercial Residential: Commercial
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 84″
Door Material: Wood or Metal
Door Thickness: 1-3/4″
Finish: 628/US28
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Right Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Mechanical Function: Classroom
Minimum Stile Size: 3-1/2″
Pack Qty: 1
Pbs Options: 65172895
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 25 Series Exit Devices
Strike Bottom: 3788
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 3788
Trim Design: D – Dane
Trim Part No: 510L-D SP28
Trim Type: Lever
Type: Exit Devices
Unit of Measure: Each
Resources
- 19, 24, 25 and XX Series Exit Devices Service Manual
- 24 Series / 25 Series Sell Sheet
- 25 Series Exit Devices Cut Sheet
- 25-C Installation Instructions
- 25-M Installation Instructions
- 25-R Installation Instructions
- 25-V Installation Instructions
- 25-WDC Installation Instructions
- 510L-NL/510L-DT 513K-NL/513K-DT Installation Instructions
- Falcon Motorized Electric Latch Retraction Kit Data Sheet
- Video: Falcon 25R Rim Exit Device Installation
- Von Duprin Finishes Chart
