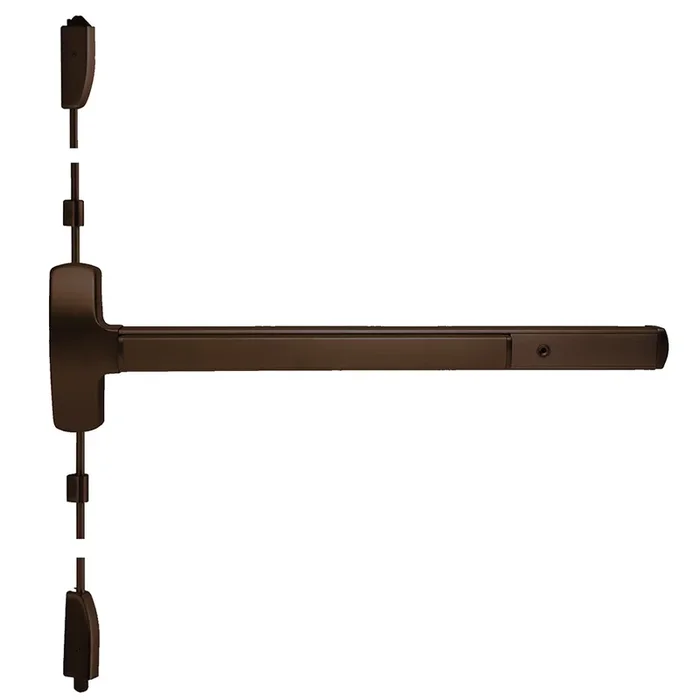

Falcon Lock MEL25-V-EO 3 313AN SVR Exit Device, 3′ Exit Only
Falcon Lock MEL25-V-EO 3 313AN SVR Exit Device is engineered for high-traffic environments, offering Grade 1 durability and reliability. This exit-only device features a surface vertical rod design, making it an ideal choice for locations such as offices, churches, hotels, retail spaces, and educational facilities. With a 36-inch device length and designed for 84-inch door heights, it provides robust security and ease of use. The sleek wide stile pushpad ensures an aesthetically pleasing installation while also facilitating quick egress. This model incorporates advanced motorized electric latch retraction for added convenience. The Falcon MEL25-V-EO is field-reversible, accommodating various installation needs without compromising functionality. Its architectural design not only enhances the overall appearance but also integrates seamlessly into both new constructions and retrofitting projects. The device is equipped with patent-pending deadlocking technology, ensuring that your entrance is secure when not in use. Additionally, it can handle a variety of door materials, including wood or metal, with a thickness of 1-3/4 inches. With a limited warranty of 10 years, the Falcon MEL25-V-EO exit device stands as a reliable solution for maintaining safety and accessibility in diverse applications.
SVR Exit Device, Exit Only 3′
Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Device, 84″ Door Height, Exit Only Function, Less Trim, Less Dogging, Motorized Electric Latch Retraction, Dark Bronze Anodized Aluminum Finish, Field Reversible
High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.
Architectural wide-stile push pad exit devices providing quality and durability at an affordable price.
A host of features makes this a smart solution, like a choice of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined styling and a choice of wide-stile device applications means a smart solution for your building design, as well as its use.
Features:
- Maximum flexibility in a variety of applications
- Wide range of features and options
- Patent pending deadlocking technology
Applications:
- Frequent traffic
- Offices, churches, hospitality, retail, education, healthcare
- Interior, exterior, new construction, retro-fit
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3-2001
Commercial Residential: Commercial
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 84″
Door Material: Wood or Metal
Door Thickness: 1-3/4″
Electric Options: Motorized Electric Latch Retraction
Finish: 313
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 10 Years
Mechanical Function: Exit Only
Minimum Stile Size: 3-1/2″
Pack Qty: 1
Pbs Options: 216157553
Physical Appearance: Wide Stile Pushpad
Series: 25 Series Exit Devices
Strike Bottom: 3788
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 3788
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: “A” Label (3 hr)
Unit of Measure: Each
Resources
- 19, 24, 25 and XX Series Exit Devices Service Manual
- 24 Series / 25 Series Sell Sheet
- 25 Series Exit Devices Cut Sheet
- 25-C Installation Instructions
- 25-M Installation Instructions
- 25-R Installation Instructions
- 25-V Installation Instructions
- 25-WDC Installation Instructions
- 510L-NL/510L-DT 513K-NL/513K-DT Installation Instructions
- Falcon Motorized Electric Latch Retraction Kit Data Sheet
- Video: Falcon 25R Rim Exit Device Installation
- Von Duprin Finishes Chart
