Description

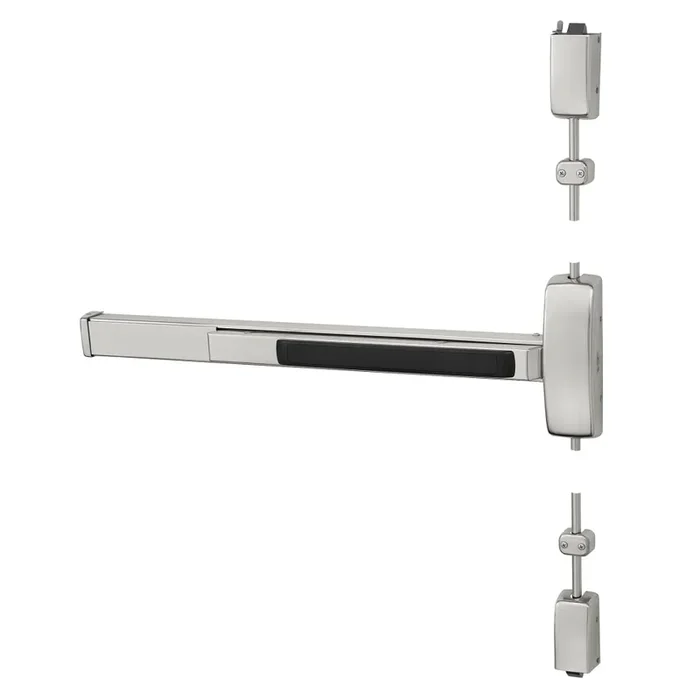

Sargent 56-8774F-24V ETJ RHR 32D SVR Fail Secure Exit Device
Sargent 56-8774F-24V ETJ RHR 32D SVR Exit Device, Fail Secure, is a Grade 1 surface vertical rod exit device designed for exceptional security and durability. With a wide stile pushpad and a device length of 36 inches, it is suitable for standard 96-inch tall doors, ensuring robust performance for commercial applications. This device features electric latch retraction and accepts electrified trim functions, providing seamless integration into access control systems. Engineered to exceed ANSI/BHMA Grade 1 standards, the Sargent 80 Series exit devices offer maintenance-free operation due to their modular construction and minimal moving parts. The two-point latching system is fully adjustable through the center case, enhancing ease of installation and adaptability to various door types, including wood or metal doors with thicknesses ranging from 1-3/4 inches to 2-1/4 inches. With its fail secure application, this exit device ensures that security remains uncompromised during power outages. Finished in a sleek satin stainless steel (630/US32D), it complements the aesthetics of any facility while maintaining functionality. The Sargent 56-8774F also meets ADA compliance standards, making it an ideal choice for accessible environments.
SVR Exit Device, Fail Secure
Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 36″ Device, 96″ Door Height, Device to Accept Electrified Trim Function, J Non-Keyed Electric Lever, Fail Secure, Electric Latch Retraction, Less Dogging, Satin Stainless Steel Finish, Right Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
Has two point latching and is adjustable through the center case.
Part of Sargent’s full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.
- Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- prefix. 4-1/2″ (114mm) minimum stile with trim and 3-1/2″ (44mm) minimum stile without trim
- Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA A156.3
Application: Fail Secure
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Surface Vertical Rod
Dogging Options: Less Dogging
Door Height: 96″
Door Material: Metal or Wood
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 33″ to 36″
Electric Options: Electric Latch Retraction
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Right Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Device to Accept Electrified Trim
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1.0
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Reversible: No
Series: 8700 Series Surface Vertical Rod Exit Devices
Ship Weight: 18 lbs.
Strike Bottom: 624.0
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 646.0
Trim Design: Non-Keyed Electric Lever
Trim Part No: 774 ETJ 24V RHRB 26D
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
Resources
- 12-HC8700 Top Case Parts List
- 14-8700 Series Surface Vertical Rod Series Bottom Case Parts List
- 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
- 43-Flush End Cap Rail Cutting Installation Instructions
- 55-Signal Switch for 80 Series Installation Instructions
- 56-Electric Latch Retraction Exit Device Sell Sheet
- 565 & 665 Metal End Cap Kit Installation Instructions
- 57-Delayed Action 80 Series Exit Device Installation Instructions
- 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
- 59-8700 Surface Vertical Rod Chassis Parts List
- 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
- 80 Series Brochure
- 816 Cylinder Dogging Kit Parts List
- 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
- 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
- AL- Alarmed Exit Device Installation Instructions
- Basic Fundamentals – Exit Devices
- Electric Dogging for 80 Series Installation Instructions
- Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
- NB-8700 ET Trim Template
- Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
- Video: 8700 Series Surface Vertical Rod Exit Device Installation
- Windstorm Solutions – Exit Devices
