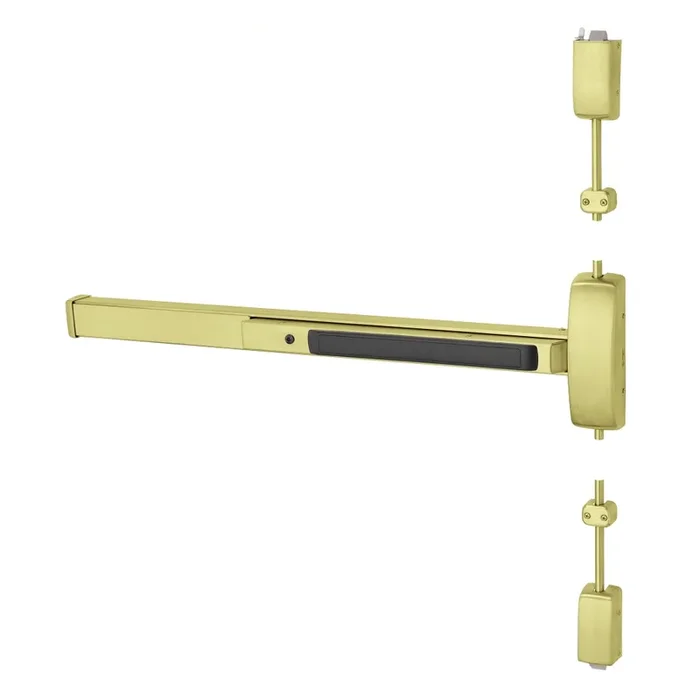

Sargent 8710J LHR 4 SVR Exit Device – Exit Only
Sargent 8710J LHR 4 SVR Exit Device, Exit Only offers a robust solution for high-traffic environments requiring reliable security. This Grade 1 Surface Vertical Rod Exit Device features a wide stile pushpad design, measuring 42 inches in length, and boasts hex key dogging for ease of use. Finished in a sleek satin brass, this device is specifically designed for left-hand reverse installations. The Sargent 80 Series is known for its exceptional durability and modular construction, ensuring maintenance-free operation and exceeding ANSI/BHMA Grade 1 standards for both cycle and strength. With two-point latching adjustable through the center case, it provides optimal security for wood or metal doors ranging from 1-3/4 inches to 2-1/4 inches in thickness. Ideal for commercial applications, this exit device accommodates doors 37 to 42 inches wide without the need for cutting. It also offers a variety of options for unique requirements, such as delayed egress or electric latch retraction. Backed by a 5-year limited warranty, the Sargent 8710J is a trusted choice for building professionals seeking a reliable and aesthetically pleasing exit solution.
SVR Exit Device, Exit Only
Grade 1 Surface Vertical Rod Exit Device, Wide Stile Pushpad, 42″ Device, Exit Only, Hex Key Dogging, Satin Brass Finish, Left Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
Has two point latching and is adjustable through the center case.
Part of Sargent’s full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.
- Door Types: Wood or metal 1-3/4″(44mm) Thick Door; Over 1-3/4″ to 2-1/4″ specify thickness and order as a 31- prefix. 4-1/2″ (114mm) minimum stile with trim and 3-1/2″ (44mm) minimum stile without trim
- Door Widths:E Rail – 24″ to 32″ (61cm to 81cm) No cutting required for 32″ door;F Rail – 33″ to 36″ (84cm to 91cm) No cutting required for 36″ door;J Rail – 37″ to 42″ (94cm to 107cm) No cutting required for 42″ door;G Rail – 43″ to 48″ (110cm to 122cm) No cutting required for 48″ door
Attributes
Accessible: No
Ada Compliance: No
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 42″
Device Type: Surface Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 96″
Door Material: Metal or Wood
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 37″ to 42″
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Exit Only
Minimum Stile Size: 3-1/2″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1.0
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Reversible: No
Series: 8700 Series Surface Vertical Rod Exit Devices
Ship Weight: 15 lbs.
Strike Bottom: 624.0
Subtype: Surface Vertical Rod Exit Devices
Top Strike: 646.0
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
Resources
- 12-HC8700 Top Case Parts List
- 14-8700 Series Surface Vertical Rod Series Bottom Case Parts List
- 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
- 43-Flush End Cap Rail Cutting Installation Instructions
- 55-Signal Switch for 80 Series Installation Instructions
- 56-Electric Latch Retraction Exit Device Sell Sheet
- 565 & 665 Metal End Cap Kit Installation Instructions
- 57-Delayed Action 80 Series Exit Device Installation Instructions
- 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
- 59-8700 Surface Vertical Rod Chassis Parts List
- 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
- 80 Series Brochure
- 816 Cylinder Dogging Kit Parts List
- 8600/8700/8800/8900 Wide Stile Rail Assemblies Parts List
- 8700 Series Surface Vertical Rod Exit Devices Cut Sheet
- AL- Alarmed Exit Device Installation Instructions
- Basic Fundamentals – Exit Devices
- Electric Dogging for 80 Series Installation Instructions
- Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
- NB-8700 ET Trim Template
- Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructions
- Video: 8700 Series Surface Vertical Rod Exit Device Installation
- Windstorm Solutions – Exit Devices
