Hafele 372.27.353 Hafele Free Space Swing-Up Fitting 1.11
Hafele 372.27.353 Swing-Up Fitting, Hafele Free Space 1.11 is designed for standard applications with a model E handle in an attractive anthracite finish. This fitting excels in versatility, accommodating up to 80% of flap applications, making it an ideal choice for a variety of cabinet settings. Its compact design, coupled with Häfele engineered technology, maximizes internal cabinet space while ensuring a streamlined aesthetic. The fitting allows for adjustable door openings at angles of 90° or 107°, providing flexibility for different user preferences. Installation is fast and straightforward, utilizing standard 32/37 mm line holes and a single pre-mounted screw, eliminating the need for additional hinges or cover caps. It is suitable for wood or aluminum frame doors, streamlining the installation process further. This fitting supports cabinet heights from 225 mm to 650 mm and can handle lid weights of up to 13.4 kg. The lever arms are spring-loaded, ensuring smooth operation, while the intuitive 3D door alignment and closing adjustments facilitate precise fitting. Supplied with two fittings (right/left), mounting brackets, screws, and installation instructions, the Hafele 372.27.353 guarantees an efficient and professional solution for your cabinetry needs.

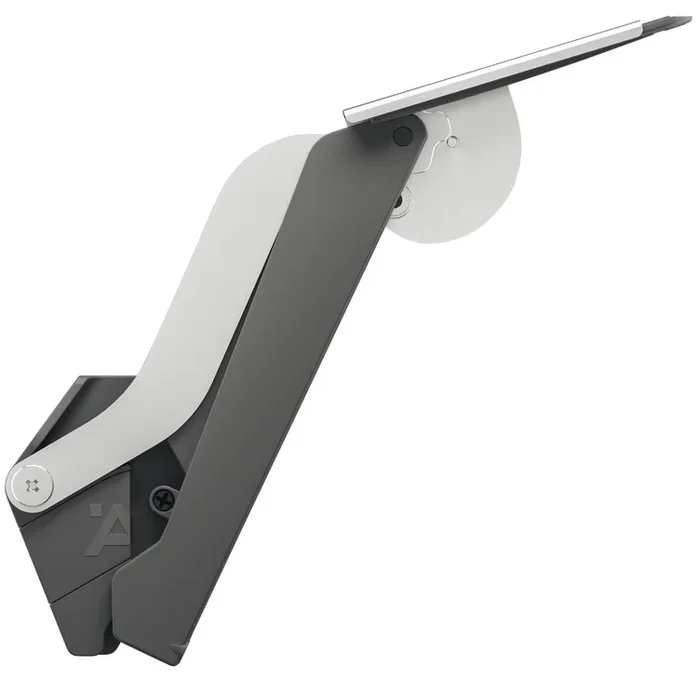

Swing-Up Fitting, Hafele Free Space 1.11
for standard applications with handle, Model E, anthracite
Extremely powerful and versatile: the Free Space series can be used for a much wider range of applications – up to 80% of all flap applications Extremely compact: modern design and Häfele engineered technology allow for more space inside a cabinet
Door opening can be adjusted to open at 90° or 107° with integrated stop Fast simple installation: plugs into standard 32/37 mm line holes and fastens with one pre-mounted screw Intuitive 3D door alignment and closing adjustment
For wood or aluminum frame doors Additional hinges and cover caps are not required
Important Selecting the correct model depends on door height and then door weight which should also consider the weight of the handle. We recommend ordering the stronger fitting if in doubt. The lever arms are spring loaded. There is a risk of injury and damage to the fitting! After mounting the arms, do not press them down in the open position until the counterweight of the door is mounted. A Pozi Drive #2 bit is required for all screw installations and adjustment features, otherwise damage to the screw head is likely. Be certain that Euro screws which attach the fittings to the side panels are completely tight, drawing the fitting tight against the side wall. For tension adjustment feature, we recommend using a cordless driver as these screws are geared very low. Be sure to adjust both sides to the same tensioning position.
- Sample measurements table for selecting the right model based on cabinet height and flap weight including handle Model B, EF≈480-983 Model C, EF≈856-1615 Model D, EF≈1460-2276 Model E, EF≈2086-3323 Model F, EF≈3040-4305 Cabinet height mm Flap weight kg Flap weight kg Flap weight kg Flap weight kg Flap weight kg 225 2.3–4.3 3.8–7.1 6.4–9.3 9.2–13.4 13.4–19.1 250 1.9–3.9 3.4–6.4 5.8–9.1 8.3–12.6 12.1–17.2 275 1.9–3.5 3.1–5.8 5.3–8.2 7.5–12.0 11.0–15.6 300 1.7–3.2 2.8–5.3 4.8–7.5 6.9–11.0 10.1–14.3 325 1.6–3.0 2.6–4.9 4.4–7.0 6.4–10.2 9.3–13.2 350 1.5–2.8 2.4–4.6 4.1–6.5 5.9–9.5 8.6–12.3 375 1.3–2.6 2.2–4.3 3.8–6.0 5.5–8.8 8.1–11.4 400 1.2–2.4 2.1–4.0 3.6–5.6 5.2–8.3 7.6–10.7 425 1.1–2.3 2.0–3.8 3.4–5.3 4.9–7.8 7.1–10.1 450 1.0–2.1 1.9–3.5 3.2–5.0 4.6–7.3 6.7–9.5 475 1.0–2.0 1.8–3.4 3.0–4.7 4.3–7.0 6.4–9.0 500 0.9–1.9 1.7–3.2 2.9–4.5 4.1–6.6 6.0–8.6 525 0.9–1.8 1.6–3.0 2.7–4.3 3.9–6.3 5.7–8.2 550 0.8–1.7 1.5–2.9 2.6–4.1 3.7–6.0 5.5–7.8 575 0.8–1.7 1.4–2.8 2.5–3.9 3.6–5.7 5.2–7.4 600 0.8–1.6 1.4–2.7 2.4–3.7 3.4–5.5 5.0–7.1 625 0.7–1.5 1.3–2.5 2.3–3.6 3.3–5.3 4.8–6.8 650 0.7–1.5 1.3–2.4 2.2–3.5 3.2–5.1 4.6–6.6
- Planning Front panel thickness Y mm 16 18 19 22 24 26 28 Distance X mm (with cabinet top panel thickness K=16 mm) 117 110 107 96 90 83 76
Attributes
Adjustment facility: Please use a Pozi Drive #2 bit for all screw installations and adjustments. Door opening angle can be adjusted to 90° or 107° degrees.
Area of application: For door heights up to 650 mm (26″)
Color/ Finish cover: Housing: Anthracite, support lever: Nickel plated
Color/finish: Lever arm: Nickel plated
Efficiency factor: 2086 – 3,323
Flap type: one-piece
For cabinet height: 225 – 650 mm
For cabinet width: ≤1,800 mm
For lid height: 650 mm
For lid weight: ≤13.4 kg, note sample measurements table and cabinet height
Installation: The fitting mounts to the side panels with a single pre-mounted Euro screw. The door mounts without tools and slides onto the mounting plates.
Installation Depth (inches): 2 1/2″
Installation depth: 63.00 mm
Lid material: Wood, Aluminum frame
Material: Steel
Model: E
Opening angle: 90 ° or 107°
Order reference: For aluminum framed doors, order screws and collars set item #372.27.600 – see accessories. Minimum frame width is 45 mm (1 3/4″).
Supplied with: 2 Fittings (right/left) 2 Mounting brackets with screws 1 Set mounting instructions and paper drilling template
