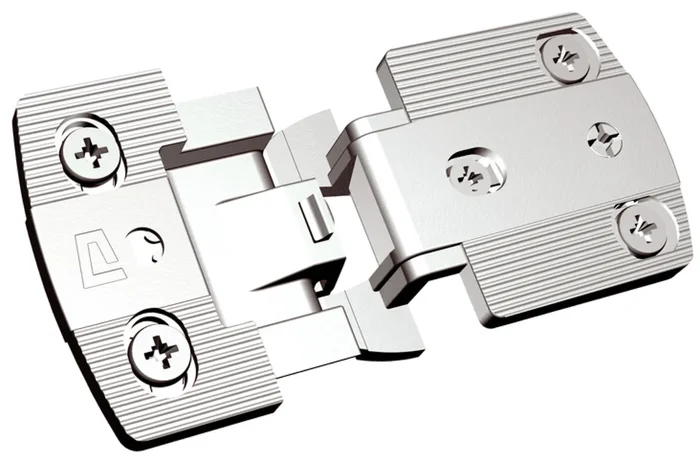

Hafele 344.75.760 Aximat 300 Thin Panel Institutional Hinge, Grade 1, Zinc Alloy
Hafele 344.75.760 Thin Panel Institutional Hinge, Aximat 300, Grade 1, Zinc Alloy offers an advanced solution for laminated (HPL) doors with a sleek design that ensures minimal visibility, showcasing only 5 mm (3/16″) of the knuckle. Engineered for thin panels, this hinge features 3D adjustability, allowing for precise depth adjustments of ±1 mm, and height adjustments of ±2 mm, ensuring a perfect fit for doors with thicknesses between 10 and 13 mm. The nickel-plated finish adds a touch of sophistication while the integrated catch secures doors without the need for additional magnetic catches. Designed for full and half overlay mounting, the hinge accommodates a door overlay of 3.5 mm, and its innovative side adjustment mechanism prevents gaps between the door’s edge and knuckle. With an impressive opening angle of 240°, this hinge is tested to meet ANSI/BHMA Grade 1 standards, assuring durability through 100,000 cycles. To ensure optimal performance in Phenolic material, it is recommended to slightly taper screw holes for a tight fit. Supplied with specially coated self-tapping screws and a twist drill bit, the Hafele 344.75.760 hinge is the ideal choice for professionals seeking reliability and style in their architectural hardware.
Aximat – Thin Panel Institutional Hinge, 300, Grade 1, Zinc Alloy
Zinc alloy, 3D adjustable, for laminated (HPL) doors, 3/8″ overlay
Specifically designed for thin panels such Phenolic material Sleep sophisticated design, only 5 mm (3/16″) of knuckle is visible 3D adjustment Depth adjustment of ± 1mm is achieved with oblong holes Height adjustment (up and down) of a ±2mm is on the door component The “Safety Screw” can be pre-installed at any time as it does not effect the adjustments, however, it is required. Integrated catch keeps doors closed, no additional magnetic catches required During overlay (side to side) adjustment, the knuckle moves with the door preventing a gap between door’s edge and knuckle Door overlay (side to side) adjustment is on the arm component as opposed to the cup component: offering continuous adjustment of +1/-2 mm in both directions Tested in accordance with ANSI/BHMA Grade 1 standards
maximum project quality according to ANSI grade 1 (100,000 cycles)
When inserting screws into Phenolic material, they may corrode because of the material’s internal properties. Screw holes should be slightly tapered in Phenolic material to assure a tight fit.
Attributes
Adjustment facility: Side adjustment facility: 1 mm, Height adjustment facility: -2 – 2 mm, Depth adjustment facility: ±1 mm, Height adjustment in cup part via eccentricDepth adjustment via horizontal slots in side component
Area of application: For thin doors for laminate panels (HPL)
Color/finish: nickel plated
Concealed hinge version: Full overlay/half overlay mounting
Door overlay: 3.50 mm
Door processing for assembly: without
For door material: laminate
For door thickness: 10 – 13 mm
Gap: 6.00 mm
Hinge arm fixing: For screw fixing
Knuckle diameter: 5.00 mm
Knuckle length: 47.00 mm
Material: Zinc alloy
Opening angle: 240°
Side panel thickness: 10 – 13 mm
Supplied with: Hinge Fixing material (specially coated self-tapping screws) 1 twist drill bit Ø 3.3 mm per packing unit 50 pieces
Version: with catch,Door overlay: 3.5 mmFull overlay mounting: Side panel thickness 10 mmHalf overlay mounting: Side panel thickness 13 mm
