Description

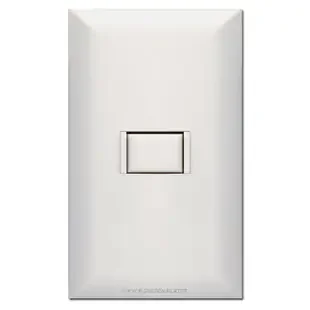

White Touchplate 5001 single switch control station is designed for use in both older and new Touch-Plate remote control wiring systems. Low voltage units include the device, plastic face plate, mounting screws and metal bracket. Use to replace discontinued 5101, 50-1 & 50-1PL 1 button Touch Plate units.
Features
- 2 wire low voltage system (cannot be used in 3-wire system)
- 4 amp @ 28 volts switch contact rating
- 1 momentary contact switch; dry contact
- durable plastic switch plate is 4-1/2″ x 2-3/4″, overall station depth is 13/16″ from front face to back of button
- one 1-1/8″ x 5/8″ horizontal push button switch
- screw holes spaced 3-9/32″ apart in bracket
- two 1″ mounting screws included
- 22 AWG wire
- if you’d like to receive wiring instructions, please add a 5000 series Touch-Plate wiring diagram
- replaces 5001-WHT, 5101, 50-1, 50001, & 50-1PL 1 button Touchplate units
- 500C1-0100A-WHT by Touch Plate, warm satin white
- buy Touchplate 5001 switches in 2 other colors
- made in USA
- note: The metal flanges on the cover post holes on vintage units are designed to be pinched with pliers to make a tighter fit for the tabs. Adjust them slightly to get the right tightness to comfortably hold the covers on.
Looking for plain or ornate wall plates in either metal or plastic finishes? Check out Kyle Switch Plates wide selection of Uncommon Wall Plate Sizes & Configurations.
NOTE FOR 3-WIRE SYSTEMS: Upgrading a 3-wire system such as Remcon, GE or Bryant? This switch won’t work. You must double the number of switches on those systems, so if you have a 1-switch unit, change to a 2-switch Touch-Plate.
