Description

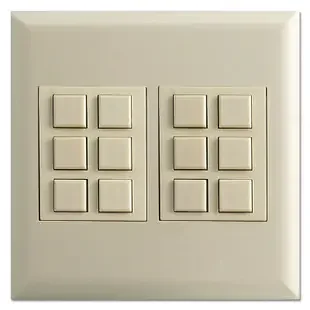

Sleek low voltage Touchplate Classic control panel controls twelve lights in homes wired for the 2 wire Touch Plate system in one compact switch panel. Replaces previous 50-12, 5412 and 5612 twelve button Touch Plate units.
Features
- 2 wire low voltage system
- get installation tips when you add our free Touch Plate wiring guide for Classic switches to your cart
- 1 amp @ 28 volts switch contact rating
- 12 momentary contact switches; dry contact
- 4-1/2″ x 4-1/2″ plastic screwless switchplate
- two 2″ x 1-9/16″ switch opening holes
- 3-9/32″ screw hole spacing in metal bracket
- four 1″ mounting screws
- fits a 2-gang box
- replaces 50-12, 5412 & 5612 Touchplate units
- satin almond CLAS2-1200A-ALM (CLA-12B-0L-ALM) by Touch Plate
- made in USA
- note: The metal flanges on the cover post holes on vintage units are designed to be pinched with pliers to make a tighter fit for the tabs. Adjust them a little bit until the right tightness holds the covers on.
This two wire low voltage 12 button switch unit can be used to replace a three wire low voltage 6 switch units by GE, Bryant or Remcon. Be sure to order the 3 wire to 2 wire Touch Plate conversion guide, which will then be included free of charge.
Click Touch Plate Low Voltage Hardware for more info on Touch Plate switches and relays.
