Description

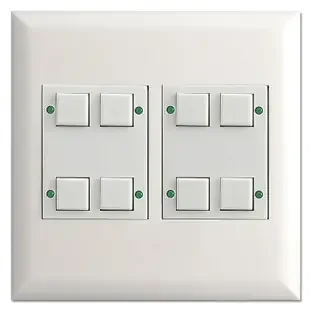

Contemporary eight switch low voltage Touch-Plate Classic control stations are a great way to add modern style to your new or existing Touchplate lighting system. With 1/2″ square button caps, these reliable replacement LED switch stations feature eight button configurations to control 8 lights in Touchplate systems.
Features
- 2 wire low voltage system
- 1 amp @ 28 volts switch contact rating
- includes wiring instruction guide
- 8 momentary contact switches; dry contact
- fits a 2-gang box
- 4-1/2″ x 4-1/2″ plastic screwless switchplate
- 2″ x 1-9/16″ switch opening holes
- 3-9/32″ screw hole spacing in metal bracket
- four 1″ mounting screws
- pilot lights with 8 blue or green LED bulbs
- replacement part for CLA-8B-8L, CC-8 and CCN8 Touchplate units
- CLAS2-0808A-WHT by Touch Plate, satin warm white
- made in USA
- note: The metal flanges on the cover post holes on vintage units are designed to be pinched with pliers to make a tighter fit for the tabs. Adjust them a little bit to get the right tightness to comfortably hold the covers on.
See Touch Plate Low Voltage Switches & Wall Plates for more info on Touchplate low voltage devices, straps, wallplates & relays.
