Description

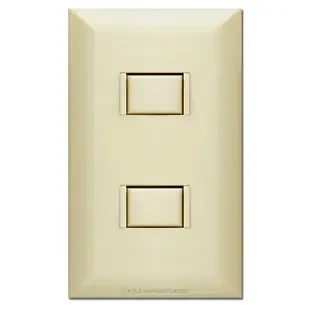

Sleek and compact, this modern Touchplate 5002 double switch control unit is a two wire low voltage system, each button operates one light. Use to replace old style Touch Plate 5102, 50-2, 50-2PL.
Features
- 2 wire low voltage system
- 4 amp @ 28 volts switch contact rating
- 2 momentary contact switches; dry contact
- 22 AWG wire
- durable plastic switch plate is 4-1/2″ x 2-3/4″, overall station depth is 13/16″ from front face to back of button
- one 1-1/8″ x 5/8″ horizontal push button switch
- screw holes spaced 3-9/32″ apart in bracket
- two 1″ mounting screws included
- buy Touchplate Lighting Control 5002 switches in 2 other colors
- replaces 5002-IVR, 50002, 5101, 50-1 & 50-1PL 1 button Touchplate units
- 500C1-0200A-IVR by Touch Plate, satin ivory
- need a wiring guide? 5000 series wiring instructions for Touch-Plate
- made in USA
- note: The metal flanges on the cover post holes on vintage units are designed to be pinched with pliers to make a tighter fit for the tabs. Adjust them a little bit to get the right tightness to comfortably hold the covers on.
Shopping for a new or older Touch-Plate low volt system? Check out our different device styles of Touch-Plate Lighting Control Devices & Wall Covers.
Using 5002 Switches in GE, Bryant or Remcon Systems:
This 2-wire low voltage 2 button switch unit can be used to replace any 3-wire low voltage 1 switch unit by GE, Bryant or Remcon. Be sure to order the 3 wire to 2 wire Touch Plate conversion guide, which will then be included free of charge.
