Description

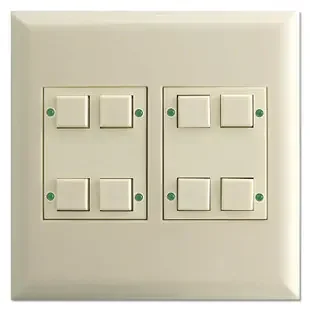

Almond Touchplate LED Lighted 8 Button Control Switch
Contemporary LED classic control stations by Touch Plate for your low voltage lighting system. Eight button LED switch station controls 8 lights in new or vintage Touchplate systems. Tiny green LED lights illuminate next to each almond button to indicate when light is on.
Features
- 8 momentary contact switches with green LED pilot lights; dry contact
- 2-wire low voltage system wiring guide
- 4-1/2″ x 4-1/2″ plastic screwless almond cover
- 2″ x 1-9/16″ switch station opening holes
- fits a 2-gang box
- 4 1″ mounting screws – 3-9/32″ screw hole spacing in metal mounting bracket
- 1 amp @ 28 volts switch contact rating
- replacement part for CLA-8B-8L, CC-8 and CCN8 Touch Plate lighting units
- CLAS2-0808A-ALM-G by Touch Plate
- made in USA
- note: The metal flanges on the cover post holes on vintage units are designed to be pinched with pliers to make a tighter fit for the tabs. Adjust them a little bit to get the right tightness to comfortably hold the covers on.
See Touch Plate Low Voltage Switches & Wall Plates for more info on Touchplate low voltage devices, straps, wallplates & relays.
