Alarm Lock DL2700IC-R US10B Trilogy T2 Cylindrical Lock Instructions
Alarm Lock DL2700IC-R US10B Trilogy T2 Cylindrical Lock offers a robust solution for secure access control in commercial settings. This Grade 1 pushbutton cylindrical lock supports up to 100 users, accommodating combinations of 3-5 digit codes, including 1 master code, 10 manager codes, and 90 basic user codes, alongside 3 one-time service codes.Designed with a straight lever and prepared for Sargent LFIC cores, this lock features an oil-rubbed bronze finish that complements various architectural styles while ensuring durability. The lock operates on 5 AA batteries, providing an impressive lifespan of up to 200,000 cycles, making it an efficient choice for high-traffic areas.The Trilogy T2 is particularly versatile, with a temperature tolerance for outdoor use ranging from -31°F to +151°F, suitable for various environments. Its interchangeable core function enables easy re-keying, enhancing security without the need for full replacements. Fire-rated for 3 hours, it meets stringent safety standards.With a sleek design and practical features, the Alarm Lock DL2700IC-R is the go-to choice for professionals seeking reliability and advanced security solutions in door hardware.

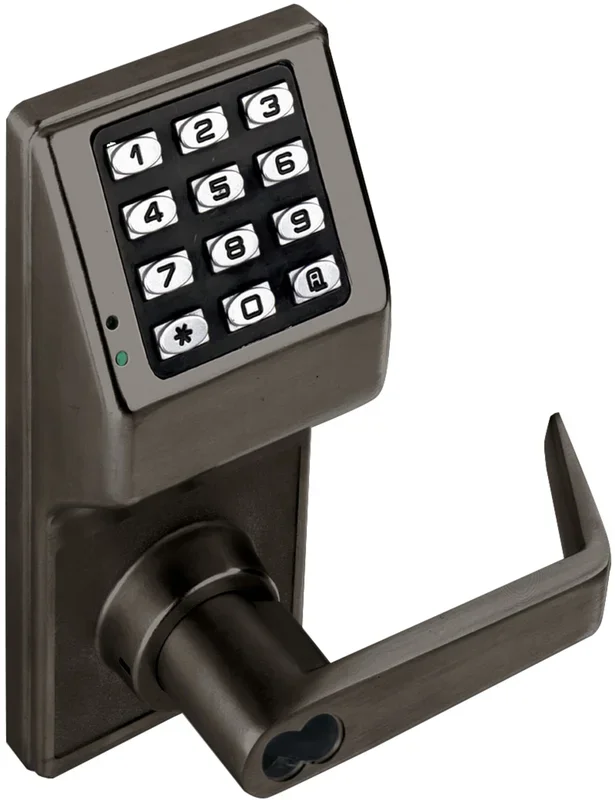

Trilogy T2 Cylindrical Lock
Grade 1 Pushbutton Cylindrical Lock, 100 Users, Straight Lever, Sargent LFIC Prep, Less Core, Oil Rubbed Bronze Finish
Trilogy Standalone Digital Cylindrical Keyless Door Locks. Hold Up To 100 3-5 Digit Codes: 1 Master, 10 Managers, 90 Basic Users, 3 One-Time Service Codes.
Trilogy® T2 standalone digital cylindrical keyless door lock.
Alarm Lock’smost popular keypad door lock – now with more codes & power.More codes withup to 100 3 to5 digit codes,1 master, 10 managers, 90 basic users, and 3 one-time service codes.5AA battery operated; 175,000 cycles, typ.For outdoors, specify WP Weatherproof models -31˚ to +151˚F (-35˚ to +66˚C).
- More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one time service codes
- 5AA battery operated; 5 years battery life or 200,000 cycles, typ.
- For outdoors, specify WP weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)
Attributes
Application: Pushbutton Keypad
Base Material: Bronze
Base Series: DL2700
Commercial Residential: Commercial
Cylinder Type: Sargent LFIC Less Core
Door Thickness: 1-5/8″ to 1-7/8″
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Interchangeable Core
Grade: Grade 1
Installation: Commercial
Keypad Type: Electronic
Latch Backset Dimension: 2-3/4″
Leverknob Design Family: Straight Return Lever
Limited Warranty: 2 Years
Lock Platform: Cylindrical Lock with Keypad Trim
Pack Height: 7.13″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 576.68 in³
Pack Width: 8.75″
Power: Battery Pack
Programmer: Optional
Reader Technology: Keypad Only
Series: DL2700 Cylindrical Pin Locks
Series Name: Trilogy
Ship Weight: 9 lbs.
Software: Optional
Std Strike Type: T-Standard and ASA
Subtype: Cylindrical Locks with Trim
Type: Integrated and Pushbutton
Unit of Measure: Each
Upc: 7.85026E+11
Users: 100
