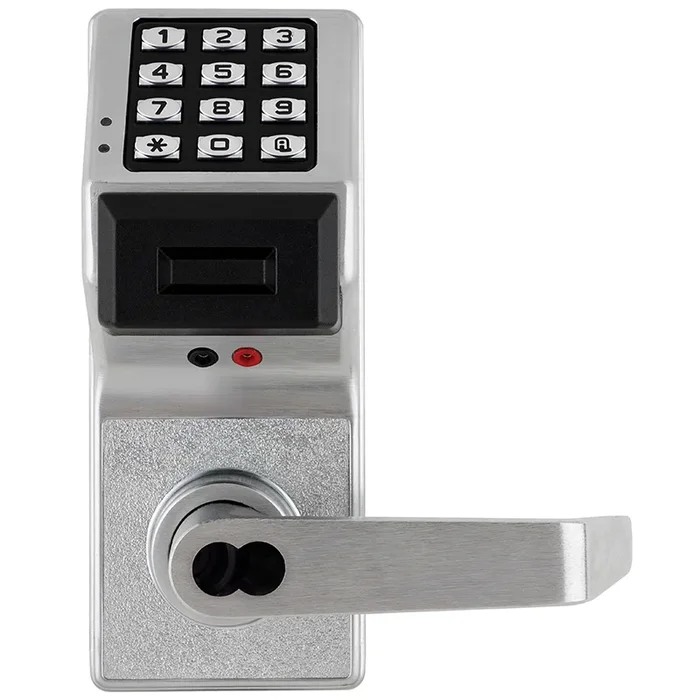

Alarm Lock PDL3000IC-S US26D Trilogy T3 Cylindrical Lock Instructions
Alarm Lock PDL3000IC-S US26D Trilogy T3 Cylindrical Lock offers a robust solution for secure access control in commercial environments. This pushbutton cylindrical door lock features an integrated proximity reader, accommodating up to 2,000 users with unique PIN codes (ranging from 3 to 6 digits) or HID prox cards and keyfobs. Its multilevel security system allows for tailored access levels, including master, manager, supervisor, and basic users, ensuring that each individual has appropriate entry privileges. Designed for durability, the PDL3000 is Grade 1 BHMA certified and weatherproof, functioning effectively in temperatures from -31°F to +151°F (-35°C to +66°C). This lock also incorporates a 40,000-event audit trail and allows for easy batch enrollment of ID cards, minimizing downtime and installation costs compared to traditional hardwired systems. The satin chrome finish not only enhances its aesthetic appeal but also provides long-lasting resilience against wear. Installation is straightforward, taking about an hour, and the PDL3000 is compatible with Schlage FSIC cores, making it a versatile choice for various door thicknesses. With features like PC programming and a quick passage mode, this lock is ideal for businesses seeking reliable and efficient access management solutions.
Trilogy T3 Cylindrical Lock
Pushbutton Cylindrical Door Lock, with Prox Reader, 2000 Users, 40000 Event Audit Trail, Straight Lever, Schlage FSIC Prep, Less Core, Satin Chrome Finish, Non-Handed
PDL3000 PIN/Prox Cylindrical High Security Locks 2000 user codes (3-6 digits) and/or accepts HID prox cards and keyfobs Multilevel security – Master; manager; supervisor; basic users Easy Tap & Add batch ID card enrollment mode allows many cards to be quickly added without PC -also- downloadable from PC or enroller tool 40,000 event audit trail log 150 scheduled events PC programming/reporting Quick passage mode (without being in program mode) Weatherproof -31deg to +151degF (-35deg to +66degC) 5AA Battery operated; 60,000 cycles, typ.
Trilogy HID® Reader/Enroller Prox Lock with audit trail.
The PDL3000 uses the same ID cards as hardwired access systems andinstalls in an hour.
- Save all the downtime and 1/2 the cost of hardwired systems
- Provide access for up to 2000 users, with prox ID-cards or 3 to 6 digit codes including:
- Master, manager, supervisor and basic user. Users are individually programmed to use a card only, code only, or, for the highest security, both card and code.
- Built-in HID Prox reader for entry with HID125KZ prox ID cards and keyfob credentials
- Grade 1 BHMA Certified durability and rugged clutch mechanism ensure long dependable life
- Weatherproof performance for indoor and outdoor applications, wide operating temperature range of -31°F to +151°F (-35°C to +66°C)
- Electronic master key system with access customized to each user’s hours – Give each user access to common areas and/or their individual area(s) and do so defined by the actual times they are permitted entry there.
- Tap and Add batch ID card enrollment mode at lock or download from a PC
- 40,000 event audit trail; 500 scheduled events
- PC programming/reporting
Attributes
Baa Qualified: No
Base Material: Brass or Bronze
Commercial Residential: Commercial
Cylinder Type: Schlage FSIC Less Core
Door Thickness: 1-5/8″ to 1-7/8″
Events: 500
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Keypad Type: Electronic
Latch Backset Dimension: 2-3/4″
Leverknob Design: 00 Lever
Leverknob Design Family: Straight Return Lever
Lock Platform: Cylindrical Lock with Proximity Keypad Trim
Pack Height: 7.13″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 576.68 in³
Pack Width: 8.75″
Power: Battery Pack
Programmer: Optional
Reader Technology: 125kHz Proximity with Keypad
Series: PDL3000 Cylindrical Pin/Prox Locks
Series Name: Trilogy
Ship Weight: 9 lbs.
Software: Optional
Std Strike Type: T-Standard and ASA
Subtype: Cylindrical Locks with Trim
Type: Integrated and Pushbutton
Ul Listing: UL Listed
Unit of Measure: Each
Upc: 7.85026E+11
Users: 2000
