Richelieu 189A971210 TYPE 971/A Aluminum Double Track System
Richelieu 189A971210 TYPE 971/A Aluminum Double Track is a premium solution designed for the SCORRI 10KG cabinet door sliding system. This aluminum double track is specifically engineered for recess mounting at the top of cabinets, making it ideal for bypassing applications. The installation process is straightforward-simply cut two parallel grooves in the cabinet top and fasten the track securely with screws (not included). Available in a sleek silver anodized finish, this track comes in two convenient lengths of 78 inches (2 m) and 118 inches (3 m), and can be easily cut to suit your specific application needs. For optimal installation accuracy, it’s essential to use metric dimensions, cutting grooves that are 14 mm wide and 12 mm deep. Designed to support a load capacity of 22 lbs, the TYPE 971/A track accommodates doors made of wood with a thickness of 5/8 to 7/8 inches. Its recessed design ensures a clean and unobtrusive look, while the straight sliding movement allows for smooth operation. With overall dimensions of 9/16 inches in height and 78 3/4 inches in length, this track is the perfect addition to enhance your furniture, cabinet, or storage solutions.
TYPE 971/A Aluminum Double Track
The TYPE 971/A aluminum double track is designed for the SCORRI 10KG cabinet door sliding system. It is recess mounted to the top of the cabinet for bypassing applications. For installation, cut two parallel grooves in the cabinet top as per the instructions and fasten with a screw in the middle of the track. Screws not included.
Features:
– Available in silver anodized
– Two different length sizes: 78 in (2 m) and 118 in (3 m)
– Can be cut to suit application

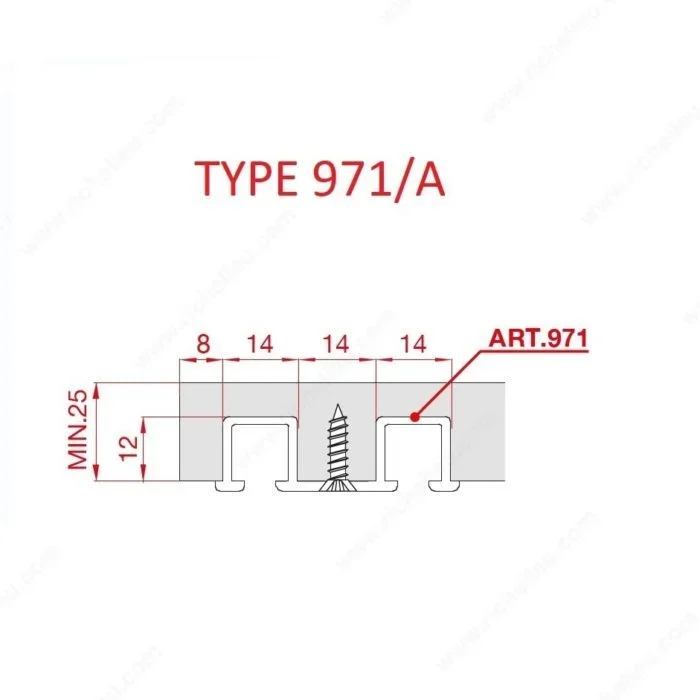

IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut two grooves in the ceiling of the cabinet 14 mm wide by 12 mm deep each, as per the instructions.
Attributes
Application: Furniture, Cabinet, Storage
Compatible with: Scorri 10KG
Detailed Door Movement: Bypassing
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 16 to 22 mm
Drilling Depth: 12 mm
Finish: Silver
Length – Overall Dimensions: 78 3/4 in*
Load Capacity: 22 lb*
Manufacturing Material: Aluminum
Material: Aluminum
Overall Height: 14 mm
Overall Length: 2 000 mm
Product #: 189A971210
Product number: 189A971210
Product type: Running and Guiding Tracks
Product №: 189A971210
Running Track Fixing: Recessed
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Material: Aluminum
Track Mounting: Recessed
Track type: Double Running
Unit: Length
Weight Capacity per Door: 10 kg
