Description

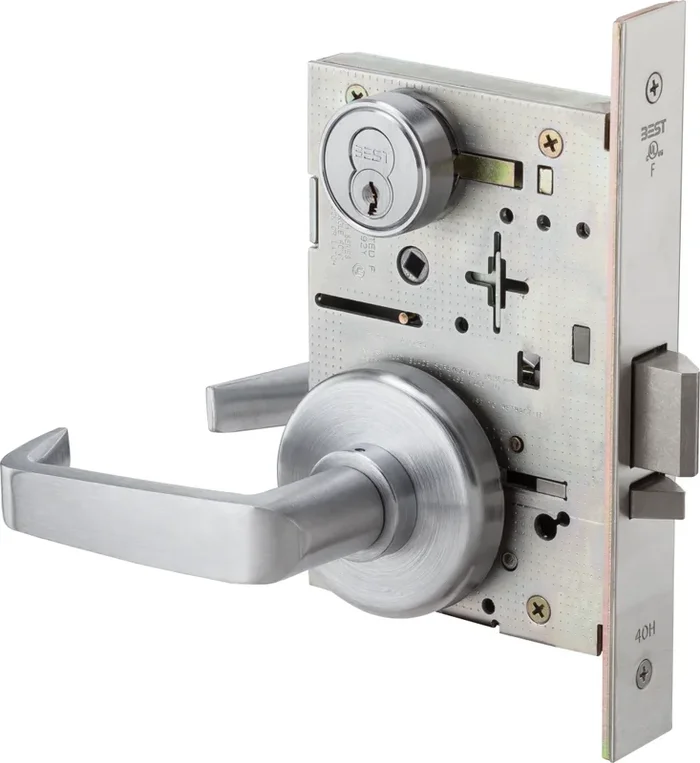

Best 45H7-UNAB-15H-626 Best Mortise Lock
Less Cylinder
- Solid one-piece stainless steel anti-friction latch provides 50 percent more surface contact with strike for superior strength and security. Reversible latch rotates 180 degrees for easy handing change without opening case. Precision-engineered curve provides enhanced cycle life with reduced wear to the strike.
- Non-handed cylinder retainer and stainless steel auxiliary bolt for ease of changing hand.
- Armored front completely surrounds latch and deadbolt providing increased lateral strength. Staked assembly design allows the armored front to self-align with the door bevel during installation.
- Enhanced case integrity achieved through four case cover screws (one at each corner), plus interlocking armored front and cover design at the latch.
- Roller bearing hub mechanism provides smooth, wear resistant operation.
- Locking toggle includes clear indication of “locked” and “unlocked” states.
- 40H case, cover, and armored front manufactured from 0.095″ cold rolled steel for strength and durability.
- Fusible link.
- Four position hub toggle design determines whether each hub is always locked, always unlocked, or locked by key for easy handing change without opening case.
- Lever return spring mechanism located in trim for enhanced protection against lever droop, providing a firm, positive return of the lever to the horizontal position.
- Self-aligning trim mechanism for fast, easy, and accurate installation.
- Curved lip strike and strike box assembly provides an aesthetic, non-handed solution to complement field reversible case.
- Solid machined cylinder rings with tension spring provide resistance to wrenching of cylinder. Cylinder security screw prevents removal of cylinder without first removing interchangeable core.
Attributes
Alternate Codes: 45H7-UNAB-15H-626, 45H7UNAB15H-626, 45H7UNAB15H626, BES45H7UNAB15H-626
Baa Qualified: Yes
Backset: 2-3/4″
Bolt Protection: 3/4″ Latch, 1″ Deadbolt
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Country of Origin: Usa
Cylinder Included: No
Cylinder Type: IC Core Cylinder, Mortise Cylinder
Door Bore Size: 2-1/8″
Door Thickness: 1-3/4″
Door Thickness Max: Specify when ordering
Door Thickness Min: 1-3/4″
Dust Box: Plastic
Finish: 626/US26D
Finish Code: 626
Finish Color: Satin Chrome
Finish : Satin Chrome
Fire Rated: 3 Hours {A}
Function: UNAB-Universal
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Knob/ Lever Design: 15
Knob/ Lever Style: Lever
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 8″ x 1-1/4″
Latch Bolt Throw: 3/4″
Latch Bolt Type: Deadlatch
Lever Knob Design: 15 – Lever
Limited Warranty: Limited Lifetime
Lock Category: Mortise Lock
Lock Face Size: 8″ x 1-1/4″
Rose Escutcheon Design: H – Rose
Rose/ Escutcheon Size: 2-3/4″
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: 40H Series
Strike Height: 4-7/8″
Strike Number: 40HST1
Strike Size: 4-7/8″ x 1-1/4″
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Mortise Lock
Supplier: Best Access
Type: LOCK SETS
Resources
- 2018 BEST Parts Price Book
- 2019 BEST Price Book
- 40H Mortise Brochure
- 40H Mortise Decorative Levers
- 40H Series – Heavy Duty Mortise Locks
- 40H Series Service Manual
- 40H Visual Indicator Thumb Turn Installation Instructions
- Drilling/Installation Instructions for 45H and 47H Mortise Locks
- Drilling/Installation Instructions for 45H and 47H Mortise Locks – French
- Drilling/Installation Instructions for 45H and 47H Mortise Locks – Spanish
- H Service Manual
- Installation Instructions for 45H Series Mortise Hook Spindles
- Installation Instructions for 45H and 47H Mortise Locks
- Installation Instructions for 45H and 47H Mortise Locks – French
- Installation Instructions for 45H and 47H Mortise Locks – Spanish
