Description

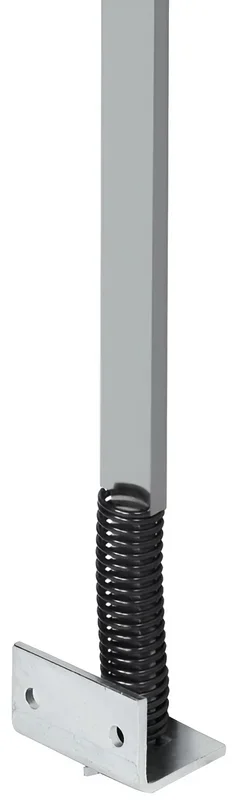

Hafele 237.42.109 Vertical Lock Bar with Spring and Instructions
Hafele 237.42.109 Vertical Lock Bar with Attached Spring and Lock Bar is designed for efficient locking of multiple drawers, making it an essential component for any cabinetry project. With a length of 600 mm (23 5/8″), this sturdy steel construction ensures durability and reliability in high-use environments. One of the standout features of this vertical lock bar is its built-in gang locking system, which provides enhanced security for your drawers. The adjustable hooks on the locking bar allow for customization, enabling them to be tailored to drawers of varying heights, ensuring a perfect fit. This flexibility is complemented by the locking bar’s movement, which is facilitated by a roller mounted at the upper end, actuated by a wedge-shaped mechanism for smooth operation. Installation is straightforward, as the lock bar is designed for screw fixing, including height-adjustable spring catches and rod guides for optimal alignment. Finished in a bright tone, the Hafele 237.42.109 not only performs well but also adds a polished look to your furniture. Ideal for professionals and discerning homeowners alike, this lock bar is a reliable choice for enhancing the security and functionality of your cabinetry.
Vertical Lock Bar with Attached Spring and Lock Bar
Built-In Gang Locking System, Length: 600 mm
Hooks are adjustable on the locking bar enabling them to be individually adapted to drawers of varying heights. Movement of the locking bar is affected by a roller, mounted at the upper end of the bar and actuated by a wedge-shaped.
Attributes
Area of application: For for locking of several drawers
Color/finish: Bright
Installation: for screw fixing, with height adjustable spring catches, rod guides for locking bars
Installation reference: Hooks are adjustable on the locking bar enabling them to be individually adapted to drawers of varying heights. Movement of the locking bar is affected by a roller, mounted at the upper end of the bar and actuated by a wedge-shaped.
Length: 600 mm
Length (inch): 23 5/8″
Material: Steel
Product type: Vertical Lock Bar
Version: With attached spring and bar guide
Resources
- Built-In Central Locking System Mounting Instructions
- Installation instructions
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 10.53
