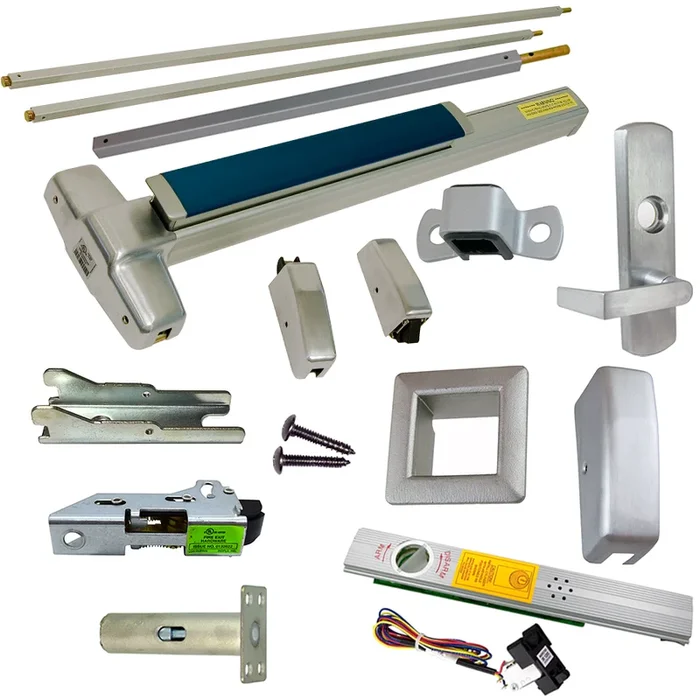

Von Duprin RX-9927L-F-626-36-LBR-LHR-06-ALK Alarmed Fire-Rated RX Exit Device, 996L-06 Lever Trim, Satin Chrome, Grade 1
Von Duprin RX-9927L-F-626-36-LBR-LHR-06-ALK KIT is a highly reliable alarmed exit device, designed for fire-rated applications. This model features a Request to Exit switch and a Surface Vertical Rod (SVR) configuration, ensuring both safety and ease of use in emergency situations. With a satin chrome finish (626/US26D), it offers a sleek aesthetic that blends seamlessly with various architectural styles. Engineered to meet ANSI/BHMA A156.3 2014 Grade 1 and UL standards for fire exit hardware, the RX-9927L provides robust security with its deadlocking anti-friction latch bolt. The device accommodates door sizes from 2’ to 4’ and has a centerline height of 39-5⁄8″ from the finished floor, making it suitable for a range of installations.This exit device is less bottom rods, allowing for efficient installation and maintenance. The alarm exit kit enhances security by alerting personnel to unauthorized exits, making it ideal for high-traffic areas. With options for various mechanical and electrified features, including electric latch retraction and monitoring, the RX-9927L ensures that your exit solutions are not only compliant but also advanced in functionality. Choose Von Duprin RX-9927L-F for dependable performance and peace of mind in safety.
KIT – Alarmed, Fire-Rated (No Dogging), RX (Request to Exit Switch), SVR (Surface Vertical Rod) Exit Device, 996L-06 Lever Trim, LHR Left Hand Reverse/Reversible Handing, Less Bottom Rods, 36in x 84in, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
9827-F/9927-F Fire exit surface mounted vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9827-F device has a smooth mechanism case and the 9927-F device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SS (signal switch), and WS (tornado/hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad composite fire doors.
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
- Device Lengths:
- 2’ – 2’ (610 mm) Door size.
- 3’ – 2’ 4″ to 3’ (711mm to 914mm) Door size.
- 4’ – 2’ 10″ to 4’ (864mm to 1219mm) Door size.
- Device Centerline from Finished Floor: 39-5⁄8″ (1006 mm).
- Center Case: 8″ x 2-3⁄4″ x 2-3⁄8″ (203mm x 70mm x 60mm).
- Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm).
- Projection:
- Push bar neutral – 3-13⁄16″ (97mm).
- Push bar depressed – 3-1⁄16″ (78mm).
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16mm) throw.
- Door Undercut: 1⁄4″ (7mm) recommended.
- Top and Bottom Latch Case: 4-1⁄2″ x 2-1⁄8″ x 1-1⁄2″ (114mm x 54mm x 38mm).
- Vertical Rods:
- 1⁄2″ square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16″ (887mm).
- Bottom rod length: 31-1⁄2″ (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
- Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4″ (44mm) to 2-1⁄4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
- Electrified Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX :Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- GBK: Glass bead kit
- LBR: Less bottom rod
- PL: Pullman latch
- PN: Pneumatic latch retraction
- QM: Quiet mechanical
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- WS: Tornado and hurricane tested
- Dogging Options: No mechanical dogging; QEL options available
- Strikes:
- Top – 299F –(499F LBR) Dull black
- Bottom – 304L – Unfinished
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 625 – Bright chrome
- 626/626AM – Satin chrome (antimicrobial)
- 628 – Aluminum, anodized
- 710 – Dark brown, anodized
- 711 – Flat black
- 643E – Aged bronze
Features
- WS: Tornado and hurricane tested
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
- Projection:
- Push bar neutral – 3-13⁄16″ (97mm).
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16mm) throw.
- RX: Request to exit
- GBK: Glass bead kit
- ALK: Alarm exit kit
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- 1⁄2″ square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16″ (887mm).
- Vertical Rods:
- EL: Electric latch retraction
- SNB: Sex bolts
- Dogging Options: No mechanical dogging; QEL options available
- Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm).
- Top – 299F –(499F LBR) Dull black
- Top and Bottom Latch Case: 4-1⁄2″ x 2-1⁄8″ x 1-1⁄2″ (114mm x 54mm x 38mm).
- CON: Allegion Connect
- -2: Double cylinder
- Center Case: 8″ x 2-3⁄4″ x 2-3⁄8″ (203mm x 70mm x 60mm).
- PN: Pneumatic latch retraction
- QEL: Quiet electric latch retraction
- Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4″ (44mm) to 2-1⁄4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
- Mechanical Options:
- 3’ – 2’ 4″ to 3’ (711mm to 914mm) Door size.
- WP-RX: Waterproof request to exit
- Bottom rod length: 31-1⁄2″ (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
- PL: Pullman latch
- Device Lengths:
- 2’ – 2’ (610 mm) Door size.
- E: Electric locking and unlocking trim
- SS: Signal switch
- ESL: Emergency secure lockdown
- 4’ – 2’ 10″ to 4’ (864mm to 1219mm) Door size.
- Bottom – 304L – Unfinished
- Electrified Options:
- LX: Latch bolt monitor switch
- QM: Quiet mechanical
- Push bar depressed – 3-1⁄16″ (78mm).
- Strikes:
- CX :Chexit delayed exit
- SEC: Security screws
- Door Undercut: 1⁄4″ (7mm) recommended.
- Device Centerline from Finished Floor: 39-5⁄8″ (1006 mm).
- LBR: Less bottom rod
- RX2: Double request to exit
- WH: Weep holes
Attributes
Access Type: Alarmed Exit, Request to Exit
Alternate Codes: RX-9927L-F-626-36-LBR-LHR-06-ALK, RX9927LF62636LBRLHR06ALK
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Certifications: A156.3, ANSI, ANSI/UL 10C, ANSI/UL 305, BHMA, CAN/ULC-S104
Device Width: 36″
Door And Lock Sensor: Pushbar Monitor
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Surface Vertical Rod Exit SVR
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Fire Rated: Yes
Fire Rating: 180 min
Function: Classroom, Lever
Grade: Grade 1
Handing: Left Handed Reverse
Lever Design: 6
Manufacturer: Von Duprin
Options: Less Bottom Rod
Series: 98/99
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Less Bottom Strike, Standard Rim Fire
