Von Duprin QELA-9847NL-OP-F-626-36 Fire-Rated QEL CVR Smooth Exit Device, 110MD-NL-OP Nightlatch Trim, Satin Chrome

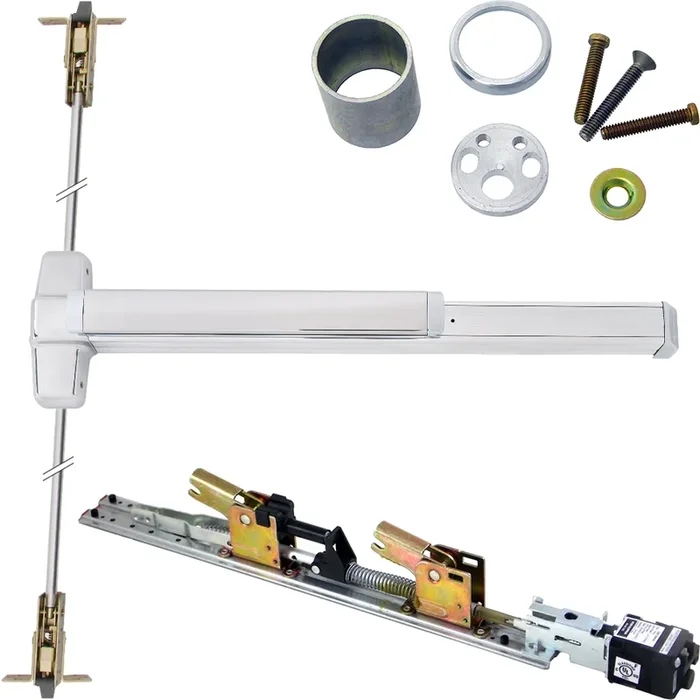

Von Duprin QELA-9847NL-OP-F-626-36 KIT is a fire-rated exit device that combines safety with convenience, featuring Quiet Electric Latch Retraction (QEL) and Concealed Vertical Rod (CVR) design. This device is certified to ANSI/BHMA A156.3 2014, Grade 1, and is UL listed for fire exit hardware, ensuring compliance and reliability in emergency situations. Designed for door sizes ranging from 36 inches to 96 inches, it is adaptable to various applications. The device includes a deadlocking top and bottom bolt with a 5/8-inch throw, enhancing security while allowing smooth exit operation. The adjustable vertical rods accommodate doors up to 8 feet 4 inches, with extension rod kits available for taller installations. In addition, the 110MD-NL-OP Nightlatch Trim, which requires a rim cylinder, offers added security, allowing key access to retract the latch bolt. The recommended door undercut is 1/4 inch, ensuring proper functionality and fit.Finished in a durable satin chrome (626/US26D), this exit device is not only aesthetically pleasing but also built to withstand the test of time. With no mechanical dogging and various electrical options available, including request-to-exit and emergency lockdown features, the Von Duprin QELA-9847NL-OP-F-626-36 KIT is an ideal choice for enhancing safety in commercial spaces.
KIT – Fire-Rated, QEL (Quiet Electric Latch Retraction), CVR (Concealed Vertical Rod) Smooth Exit Device, 110MD-NL-OP Nightlatch Trim (Requires Rim Cylinder), 36in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
9847-F/9947-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9847-F device has a smooth mechanism case and the 9947-F device has a grooved case. The concealed vertical rod device is non-handed except when the following device option is used: SS (signal switch) devices.
Specifications:
- Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
- Device Lengths:
- 2″ – 2″ (610 mm) Door size (shipped less UL label)
- 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
- 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
- Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
- Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
- Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
- Projection:
- Push bar neutral – 3-13/16″ (97 mm)
- Push bar depressed – 3-1/16″ (78 mm)
- Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
- Door undercut: 1/4″ (7mm) recommended
- Top and Bottom Latch Case: 3-3⁄4″ x 1-1⁄2″ x 1″ (95mm x 38mm x 25mm)
- Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
- Electrical Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX: Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- GBK: Glass bead kit
- LBR: Less bottom rod
- PL: Pullman latch
- PN: Pneumatic latch retraction
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- Dogging options: No mechanical dogging; QEL options available
- Strikes:
- Top – 338 – Unfinished
- Bottom – 385A – Unfinished
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 613 – Satin bronze-oil rubbed
- 625 – Bright chrome
- 626 – Satin chrome
- 626-AM – Satin chrome, antimicrobial coating
- 643e – Aged bronze
- 693 – Painted black
- 721 – Bright brass
- 728 – Satin brass
Features
- Projection:
- Top and Bottom Latch Case: 3-3⁄4″ x 1-1⁄2″ x 1″ (95mm x 38mm x 25mm)
- Top – 338 – Unfinished
- RX: Request to exit
- GBK: Glass bead kit
- 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
- ALK: Alarm exit kit
- -2SI: Double cylinder with security indicator
- Push bar neutral – 3-13/16″ (97 mm)
- EL: Electric latch retraction
- SNB: Sex bolts
- CON: Allegion Connect
- -2: Double cylinder
- PN: Pneumatic latch retraction
- QEL: Quiet electric latch retraction
- Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
- Mechanical Options:
- Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
- Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
- WP-RX: Waterproof request to exit
- PL: Pullman latch
- Device Lengths:
- E: Electric locking and unlocking trim
- SS: Signal switch
- Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
- ESL: Emergency secure lockdown
- CX: Chexit delayed exit
- Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
- Dogging options: No mechanical dogging; QEL options available
- Push bar depressed – 3-1/16″ (78 mm)
- LX: Latch bolt monitor switch
- 2″ – 2″ (610 mm) Door size (shipped less UL label)
- Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
- Electrical Options:
- Strikes:
- Bottom – 385A – Unfinished
- SEC: Security screws
- Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
- 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
- LBR: Less bottom rod
- Door undercut: 1/4″ (7mm) recommended
- RX2: Double request to exit
- WH: Weep holes
Attributes
Ship via: No UPS – Common Carrier Only
Alternate Codes: QELA-9847NL-OP-F-626-36, QELA9847NLOPF62636
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Center Line: 3′ 3-5/8″
Certifications: A156.3, ANSI, ANSI/UL 10C, ANSI/UL 305, BHMA, CAN/ULC-S104
Device Width: 36″
Door Application: Panic Devices & Exit Alarms
Door Frame Type: Hollow Metal Frame
Door Thickness: 1-3/4″
Door Type: Hollow Metal
Electrical Option: Electric Latch Retraction, Quiet
Exit Device Category: Concealed Vertical Rod Exit CVR
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Fire Rated: Yes
Fire Rating: 180 min
Function: Night Latch, Opt. Pull
Grade: Grade 1
Handing: Field Reversible
Manufacturer: Von Duprin
Series: 98/99
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
Trim Option: Less Trim
