Description

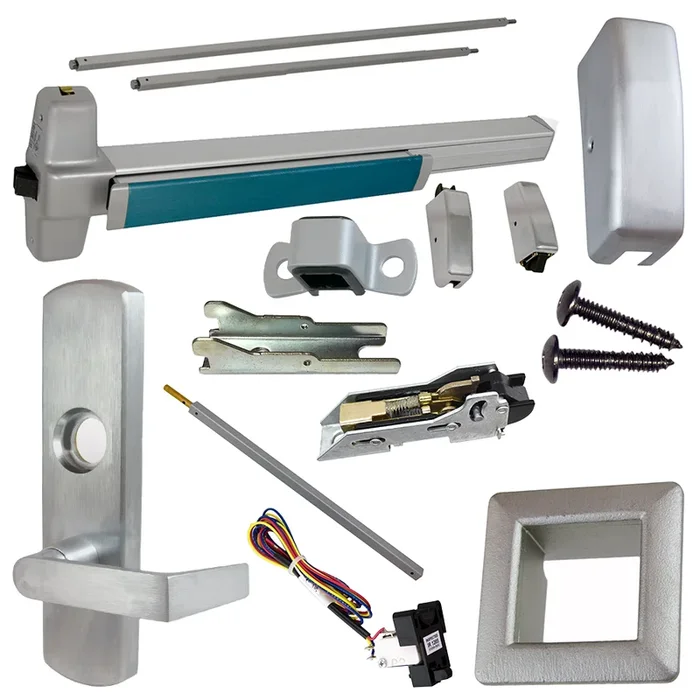

Von Duprin RX-9927L-628-48-LBR-RHR-06 RX Exit Switch SVR Grooved Device, 996L-06 Lever Trim, RHR, Grade 1, Satin Aluminum
Von Duprin RX-9927L-628-48-LBR-RHR-06 KIT is a robust and versatile surface vertical rod exit device designed for high-traffic areas. This Grade 1 certified device meets the ANSI/BHMA A156.3 2014 standard and is UL listed for panic exit hardware, ensuring safety and reliability. Ideal for single or double doors, it accommodates various door sizes, from 2 feet to 4 feet in width. The RX-9927L features a grooved mechanism case, a deadlocking anti-friction latch bolt with a 5/8″ throw, and a push bar that projects 3-13/16″ when neutral, ensuring easy egress in emergencies. The device is designed for right-hand reversible handing, making installation straightforward. With a centerline height of 39-5/8″ from the finished floor, it aligns with industry standards for accessibility. This model includes the RX request to exit switch, enhancing security by allowing controlled access. Its satin aluminum finish (628/US28) offers both a modern aesthetic and durability. The RX-9927L comes as a kit, providing everything needed for installation, including fasteners for various door types. Choose the Von Duprin RX-9927L for a reliable solution that prioritizes safety without compromising on style or functionality.
KIT – RX (Request to Exit Switch), SVR (Surface Vertical Rod) Grooved Exit Device, 996L-06 Lever Trim, RHR Right Hand Reverse/Reversible Handing (Snap Ring Tool Required), Less Bottom Rods, 48in x 84in, Grade 1, 628/US28 Satin Aluminum
Notice: The info below is not item specific.
9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SD (special dogging), SS (signal switch) or WS (tornado/hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.
Specifications:
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
- Device Lengths:
- 2’ – 2’ (610 mm) Door size.
- 3’ – 2’ 4″ to 3’ (711mm to 914mm) Door size.
- 4’ – 2’ 10″ to 4’ (864mm to 1219mm) Door size.
- Device Centerline from Finished Floor: 39-5⁄8″ (1006 mm).
- Center Case: 8″ x 2-3⁄4″ x 2-3⁄8″ (203mm x 70mm x 60mm).
- Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm).
- Projection:
- Push bar neutral – 3-13⁄16″ (97mm).
- Push bar depressed – 3-1⁄16″ (78mm).
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16mm) throw.
- Door Undercut: 1⁄4″ (7mm) recommended.
- Top and Bottom Latch Case: 4-1⁄2″ x 2-1⁄8″ x 1-1⁄2″ (114mm x 54mm x 38mm).
- Vertical Rods:
- 1⁄2″ square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16″ (887mm).
- Bottom rod length: 31-1⁄2″ (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
- Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4″ (44mm) to 2-1⁄4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
- Electrified Options:
- LX: Latch bolt monitor switch
- RX: Request to exit
- RX2: Double request to exit
- E: Electric locking and unlocking trim
- EL: Electric latch retraction
- ESL: Emergency secure lockdown
- QEL: Quiet electric latch retraction
- SS: Signal switch
- CX :Chexit delayed exit
- ALK: Alarm exit kit
- WP-RX: Waterproof request to exit
- CON: Allegion Connect
- Mechanical Options:
- -2: Double cylinder
- -2SI: Double cylinder with security indicator
- AX: Accessible device
- GBK: Glass bead kit
- LBR: Less bottom rod
- PL: Pullman latch
- PN: Pneumatic latch retraction
- QM: Quiet mechanical
- SNB: Sex bolts
- SEC: Security screws
- WH: Weep holes
- WS: Tornado and hurricane tested
- Dogging Feature: Hex key dogging standard
- Dogging Options:
- CD: Cylinder dogging
- CDSI: Cylinder dogging with security indicator
- HDSI: Hex dogging with security indicator
- SD: Special center case dogging
- LD: Less dogging
- DI: Dogging indicator
- CI: Cylinder dogging indicator
- Strikes:
- Top – 299 – Dull black
- Bottom – 248L4 and 304L – Unfinished
Standard Trim:
- EO: No outside trim. Exit only
- DT: Dummy trim. Pull when dogged (not recommended for fire device)
- NL: Night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- NLOP: Night latch. Key retracts latchbolt, pull required
- TP: Thumbpiece
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- K/L: Knob/Lever
- Key locks and unlocks
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- Electrified lever operation available
- KDT/LDT: Knob/lever dummy trim. Pull when dogged
- KNL/LNL: Knob/lever, night latch
- Key retracts latchbolt
- Rim and 1-1/4″ mortise cylinder
- Handed, reversible lever
- KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
- TL: Turn lever
- Key locks and unlocks (use with DT trim)
- 1-1/4″ mortise cylinder
- TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
- TLOP: Turn lever, optional pull
- HL: Hospital latch
- Key locks and unlocks
- 1-1/4″ mortise cylinder
Finishes:
- 605 – Bright brass
- 606 – Satin brass
- 612 – Satin bronze
- 625 – Bright chrome
- 626/626AM – Satin chrome (antimicrobial)
- 628 – Aluminum, anodized
- 710 – Dark brown, anodized
- 711 – Flat black
- 643E – Aged bronze
Features
- Push bar neutral – 3-13⁄16″ (97mm).
- GBK: Glass bead kit
- -2SI: Double cylinder with security indicator
- 1⁄2″ square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16″ (887mm).
- DI: Dogging indicator
- -2: Double cylinder
- PN: Pneumatic latch retraction
- 3’ – 2’ 4″ to 3’ (711mm to 914mm) Door size.
- WP-RX: Waterproof request to exit
- 2’ – 2’ (610 mm) Door size.
- E: Electric locking and unlocking trim
- SS: Signal switch
- CI: Cylinder dogging indicator
- ESL: Emergency secure lockdown
- 4’ – 2’ 10″ to 4’ (864mm to 1219mm) Door size.
- Electrified Options:
- LX: Latch bolt monitor switch
- Push bar depressed – 3-1⁄16″ (78mm).
- Strikes:
- SEC: Security screws
- WS: Tornado and hurricane tested
- Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
- Projection:
- Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16mm) throw.
- RX: Request to exit
- LD: Less dogging
- ALK: Alarm exit kit
- Top – 299 – Dull black
- AX: Accessible device
- Vertical Rods:
- EL: Electric latch retraction
- Dogging Feature: Hex key dogging standard
- SNB: Sex bolts
- Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm).
- Top and Bottom Latch Case: 4-1⁄2″ x 2-1⁄8″ x 1-1⁄2″ (114mm x 54mm x 38mm).
- CON: Allegion Connect
- Center Case: 8″ x 2-3⁄4″ x 2-3⁄8″ (203mm x 70mm x 60mm).
- QEL: Quiet electric latch retraction
- Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4″ (44mm) to 2-1⁄4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
- Mechanical Options:
- Bottom rod length: 31-1⁄2″ (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
- PL: Pullman latch
- Device Lengths:
- CDSI: Cylinder dogging with security indicator
- Bottom – 248L4 and 304L – Unfinished
- QM: Quiet mechanical
- Dogging Options:
- CX :Chexit delayed exit
- HDSI: Hex dogging with security indicator
- Door Undercut: 1⁄4″ (7mm) recommended.
- SD: Special center case dogging
- Device Centerline from Finished Floor: 39-5⁄8″ (1006 mm).
- LBR: Less bottom rod
- CD: Cylinder dogging
- RX2: Double request to exit
- WH: Weep holes
Attributes
Access Type: Request to Exit
Alternate Codes: RX-9927L-628-48-LBR-RHR-06, RX9927L62848LBRRHR06
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Certifications: A156.3, ANSI, ANSI/UL 305, BHMA
Device Width: 48″
Door And Lock Sensor: Pushbar Monitor
Door Application: Panic Devices & Exit Alarms
Exit Device Category: Surface Vertical Rod Exit SVR
Finish Code: 626, 628
Finish Color: Aluminum, Brushed Aluminum, Brushed Chrome, Satin Aluminum, Satin Chrome
Function: Classroom, Lever
Grade: Grade 1
Handing: Right Handed Reverse
Lever Design: 6
Manufacturer: Von Duprin
Options: Less Bottom Rod
Series: 98/99
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Less Bottom Strike, Standard
