Description

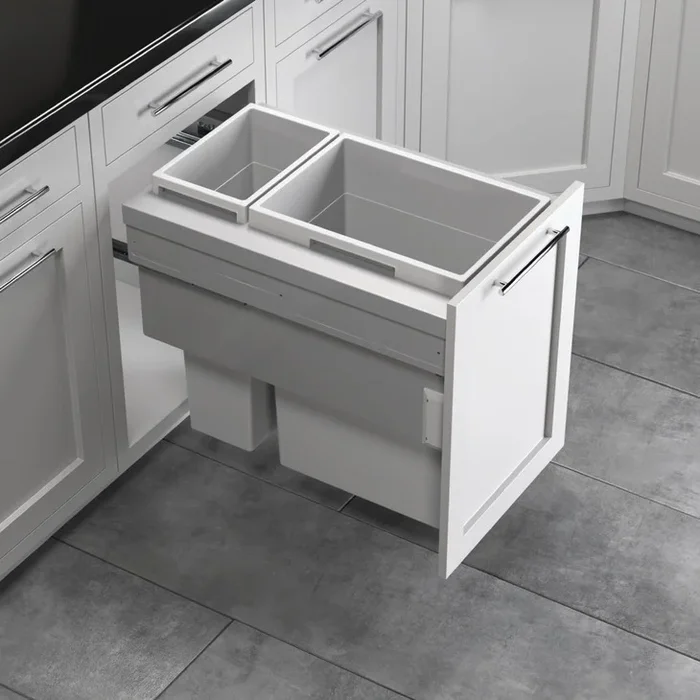

Hafele 502.77.522 Hailo US Cargo FF 18 Pull-Out Waste Bin
Hafele 502.77.522 Waste Bin Pull-Out, Hailo US Cargo FF 18 (Face Frame) offers a practical and efficient solution for managing waste in face frame cabinets. Finished in a sleek dark silver gray, this waste bin system features synchronized soft-close progressive slides, ensuring smooth and quiet operation with an impressive cycle test of 100,000.Designed to fit seamlessly below a drawer, this unit requires a cabinet depth of 575 mm (22 5/8″) and a minimum installation width of 18 inches. The system includes two bins that provide ample capacity-one at 39 quarts and the other at 15.9 quarts-perfect for separating recyclables and waste. The bins are crafted from durable plastic, while the lid and frame are constructed from robust steel, ensuring longevity and reliability. For full overlay applications, an overlay door bracket kit is necessary, allowing for a clean and integrated look. The side mounting installation is straightforward, affixing securely to the side panel and cabinet door. With a load-bearing capacity of 50 kg, this waste bin pull-out combines functionality with elegance, making it an ideal choice for modern kitchens and utility spaces.
Waste Bin Pull-Out, Hailo US Cargo FF 18 (Face Frame)
Dark silver gray
With synchronized soft close progressive slides Cycle test: 100,000
Overlay door bracket kit is required for full overlay applications
Attributes
Area of application: For face frame cabinets
Bin: 37 l / 15 l
Capacity: 1 x 39 quarts/1 x 15.9 quarts
Color/finish: Lid & Frame: Silver powder-coatedBins: Light gray
For cabinet depth: Required: 575 mm (22 5/8″)
For cabinet width: 457 mm
For internal cabinet depth: ≥419 mm
For internal cabinet depth min.: 433
Installation: Fits below a drawer
Installation reference: D x H: 569 x 521 mm (22″ x 20 1/2″)
Installation width min. (inches): 18″
Load bearing capacity: 50.00 kg
Material/finish: Lid & Frame: Steel Bins: Plastic
Mounting: Side mounting
Mounting location: Installation behind fronts, For screw fixing to side panel and cabinet door
Number of bins: 2.00
Supplied with: Lid
Resources
- 3613 – US Cargo Frame instructions and template
- Hailo US Cargo for Face Frame Cabinets
- Installation instructions
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 3.21A
