Description

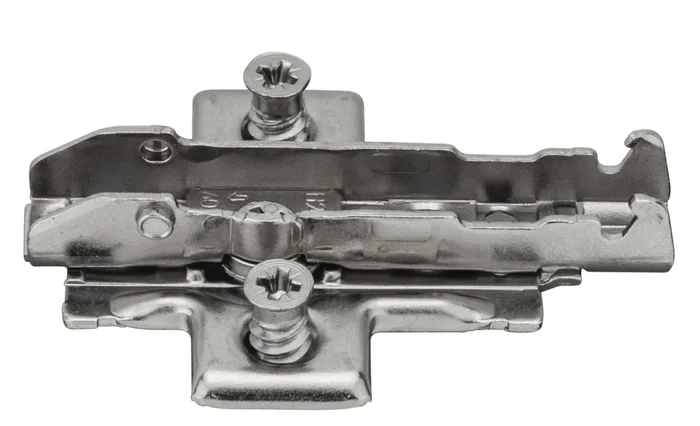

Hafele 348.38.523 Wing Baseplate, Grass TIOMOs, 4-Point Fixing with Euro Screws
Hafele 348.38.523 Wing Baseplate is designed specifically for Grass Tiomos concealed hinges, offering a reliable and efficient solution for your furniture assembly needs. This mounting plate features a robust steel construction with a nickel-plated finish, ensuring durability and a polished appearance. One of the standout features of this baseplate is its height adjustment capability, which utilizes a worm gear mechanism to provide precise adjustments of up to ±2 mm. This flexibility allows for seamless alignment during installation, enhancing the overall functionality of your cabinetry. The baseplate is equipped with a clip system for easy and secure fixing, and it comes with pre-mounted Euro screws for added convenience. With a drilling depth of 12 mm and an edge distance of 37 mm, the Hafele 348.38.523 is engineered to fit standard applications effortlessly. The model accommodates drill holes with a diameter of 5 mm, and its screw distance measures 32 mm, making it compatible with various setups.Whether you’re a building professional or a knowledgeable homeowner, this wing baseplate will streamline your installation process while maintaining the aesthetic integrity of your furniture. Ship via UPS for quick delivery and enjoy the reliability that Hafele products are known for.
Grass – Wing Baseplate, Tiomos, 4-Point Fixing with Pre-Mounted Euro Screws
Height adjustment via worm gear, Height 3 mm, model F058139763228
Attributes
Adjustment facility: Height adjustment Via worm gear ±2 mm
Area of application: for Grass Tiomos concealed hinges
Color/finish: nickel plated
Distance: 3.00 mm
Drilling depth: 12.00 mm
Edge distance: 37.00 mm
Fixing method: clip system
For drill hole Ø: 5.00 mm
Material: Steel
Model: F058139763228
Model series: Tiomose
Mounting plate version: For screw fixing with pre-mounted Euro screws
Screw distance: 32.00 mm
Screw length: 13.50 mm
Resources
- CAD data
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.60
