Description

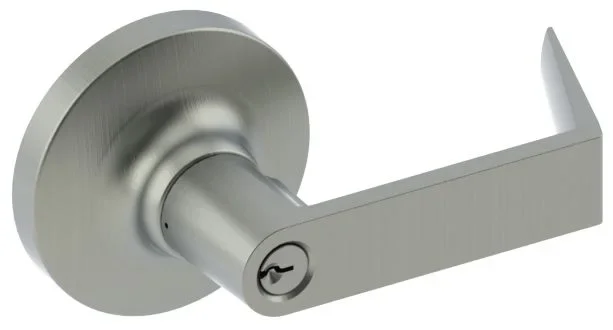

Hager 3453WTN26D Withnell Satin Chrome Lever Entry Lock
Hager Hinge 3453WTN26D Withnell Lever Entry Cylindrical Lock boasts an impressive Grade 1 keyed entry set designed for durability and reliability. Crafted from a combination of zinc for the lever, wrought brass for the rose, and a robust steel chassis, this lockset is built to withstand heavy use while maintaining its aesthetic appeal. The sleek satin chrome finish not only enhances its visual appeal but also resists tarnishing, ensuring long-lasting beauty. Featuring a non-handed design, the Withnell lever allows for versatile installation on doors ranging from 1-3/8″ to 2″ thick. The absence of exposed mounting screws contributes to a clean look while the 2-3/4″ backset and 2-1/8″ crossbore size facilitate easy installation on standard doors. The lock is equipped with a 6-pin cylinder utilizing the Hager keyway, providing a secure and reliable locking mechanism. The round rose design, measuring 3-11/32″, complements the 4-17/32″ lever length, creating a refined aesthetic. With UL/cUL Listing for all functions up to 3 hours and a limited lifetime warranty alongside a 1-year finish warranty, the Hager Hinge 3453WTN26D ensures peace of mind for both building professionals and homeowners alike.
Withnell Lever Entry Cylindrical Lock Satin Chrome Finish
At Hager, we are committed to being your one source for full line door hardware. We stand alone as one family and one brand. We create products that make a difference in one community at a time, while being mindful of the one planet we all share. Every product that Hager offers is backed by a 167-year legacy of quality, reputation, and excellence.
- Grade 1 Keyed Entry Set With Withnell Lever
- Non-Handed
- No Exposed Mounting Screws
- Wrought Brass
- Extra Heavy-Duty
Attributes
Application: CM
Backset: 2-3/4″ Backset
Category: Mechanical Commercial Locksets
Clazz: HH
Color: Satin Chrome
Country of Origin: Mexico
Crossbore Size: 2-1/8″ Bore
Design: Withnell
Dimension: 3-11/32″ Rose; 4-17/32″ Lever Length; 2-21/32″ Projection
Door Range: 1-3/8″ to 2″
Door Thickness: 1-3/8″ to 2″
Finish: Satin Chrome
Finish Code: US26D
Function: Entry
Grade: Grade 1
Hazardous Material: NO
Item Class : Withnell Lever Entry Cylindrical Lock # 012427
Item Type Keyword: Entry
Keyway: Hager Keyway
Latch Faceplate Dimension: 1-1/8″ x 2-1/4″
Lever Knob Design: Withnell Lever
Limited Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Manufacturer Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Material: Zinc Lever, Wrought Brass Rose, and Steel Chassis
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Number Of Inners: 1
Number Of Pins: 6 Pin Cylinder
Order_ Qty: 1
Product Dimension: 3-11/32″ Rose; 4-17/32″ Lever Length; 2-21/32″ Projection
Rose Escutcheon Design: Round Rose
Series: Hager 3400 Series
Strike: ASA Strike
Strike Dimension: 1-1/4″ x 4-7/8″
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing Type: UL/cUL Listed for all functions up to 3 Hours
Upc: 04135912427644
