Description

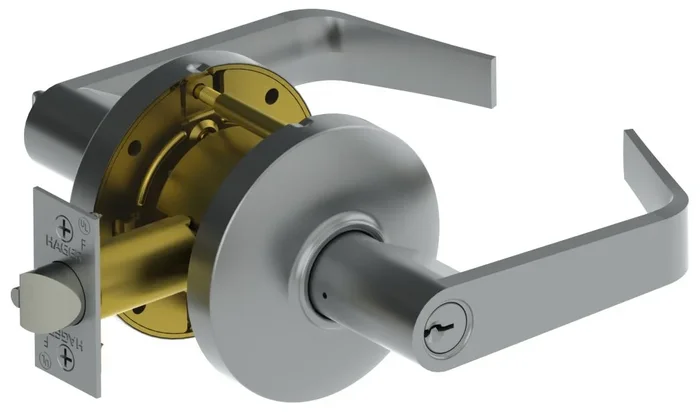

Hager 3553WTN26D Withnell Satin Chrome Lever Entry Lock
Hager Hinge 3553WTN26D Withnell Lever Entry Cylindrical Lock features a sleek satin chrome finish that elevates the aesthetic of any commercial setting. Designed as a Grade 2 single cylinder entry set, this lockset is ideal for standard duty applications, providing both security and accessibility. The innovative design ensures there are no exposed mounting screws, contributing to a clean, polished look. The lockset is non-handed, allowing for easy installation on doors ranging from 1-3/8″ to 2″ in thickness. With a 2-3/4″ backset and a 2-1/8″ crossbore size, it fits seamlessly into a variety of door configurations. Constructed from durable zinc for the lever, wrought brass for the rose, and a robust steel chassis, this product is built to withstand daily use while maintaining its functionality and appearance. The Hager Hinge 3553WTN26D boasts a 6-pin cylinder with a Hager keyway, ensuring enhanced security. Additionally, it comes with a limited lifetime warranty and a 1-year finish warranty, reflecting Hager’s commitment to quality and excellence. This lockset is UL/cUL listed for all functions up to 3 hours, providing peace of mind in safety and compliance.
Withnell Lever Entry Cylindrical Lock Satin Chrome Finish
At Hager, we are committed to being your one source for full line door hardware. We stand alone as one family and one brand. We create products that make a difference in one community at a time, while being mindful of the one planet we all share. Every product that Hager offers is backed by a 167-year legacy of quality, reputation, and excellence.
- Grade 2 Single Cylinder Entry Set With Withnell Lever
- Standard Duty Commercial
- Non-Handed
- No Exposed Mounting Screws
- Zinc Based Lever
Attributes
Ansi Function: F109 – Entry/Office
Backset: 2-3/4″ Backset
Category: Mechanical Commercial Locksets
Clazz: HH
Color: Satin Chrome
Country of Origin: Mexico
Crossbore Size: 2-1/8″ Bore
Cylinder Type: Conventional Cylinder
Design: Withnell
Dimension: 3-11/32″ Rose; 4-17/32″ Lever Length; 2-21/32″ Projection
Door Range: 1-3/8″ to 2″
Door Thickness: 1-3/8″ to 2″
Finish: Satin Chrome
Finish Code: US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Entry
Grade: Grade 2
Handing: Not Handed
Hazardous Material: NO
Item Class : Withnell Lever Entry Cylindrical Lock # 000091
Item Type Keyword: Entry
Keying: Keyed Different
Keys: Cut
Keyway: Hager Keyway
Latch Faceplate Dimension: 1-1/8″ x 2-1/4″
Lever Knob Design: Withnell Lever
Leverknob Design: WTN – Withnell Lever
Limited Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Manufacturer Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Material: Zinc Lever, Wrought Brass Rose, and Steel Chassis
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Number Of Inners: 1
Number Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
Product Dimension: 3-11/32″ Rose; 4-17/32″ Lever Length; 2-21/32″ Projection
Rose Escutcheon Design: Round Rose
Series: Hager 3500 Series
Std Keyway: Schlage C
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Drive-In Dead Latch
Std Strike Height: 4-7/8 In.
Std Strike Number: 3935
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimension: 1-1/4″ x 4-7/8″
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing Type: UL/cUL Listed for all functions up to 3 Hours
Upc: 04135900091466
Resources
- 3417 & 3517 Dummy Knob Instruction Sheet
- 3500 Series ANSI Grade 2 Knob Set Instruction Sheet
- 3500 Series ANSI Grade 2 Lever Set Instruction Sheet
- 3500 Series Grade 2 Cylindrical Locks Cut Sheet
- 3517 Rev 1 Dummy Instruction Sheet
- Hager Locks Catalog
- Timing Lever Set Instruction Sheet
