Description
Hager 3510WTN26D Withnell Satin Chrome Lever Passage Lock
Hager Hinge 3510WTN26D Withnell Lever Passage Cylindrical Lock offers a blend of functionality and contemporary design suited for standard duty commercial applications. This Grade 2 passage set features the stylish Withnell lever, providing an attractive yet durable entry solution. The satin chrome finish ensures a sleek appearance while resisting wear and corrosion, making it ideal for high-traffic areas. Designed with user convenience in mind, the 3510WTN26D has no exposed mounting screws, contributing to a clean aesthetic. Its non-handed design allows for versatile installations, accommodating doors ranging from 1-3/8″ to 2″ in thickness. With a 2-3/4″ backset and a 2-1/8″ crossbore size, this lock is compatible with a wide range of door styles. The round rose design and ASA strike add to its refined look. Constructed with a zinc-based lever, wrought brass rose, and a robust steel chassis, this lockset is built to last. Plus, it comes with a limited lifetime warranty and a one-year finish warranty, ensuring peace of mind for building professionals and homeowners alike. UL/cUL listed for up to 3 hours, the Hager Hinge 3510WTN26D is a reliable choice for your architectural door hardware needs.

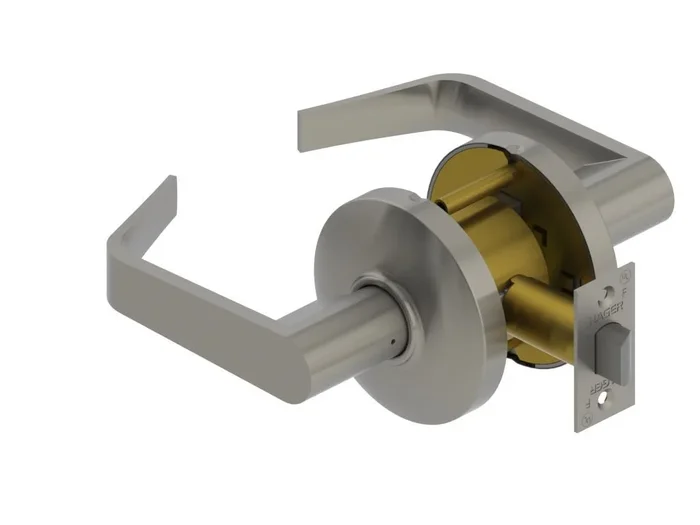

Withnell Lever Passage Cylindrical Lock Satin Chrome Finish
At Hager, we are committed to being your one source for full line door hardware. We stand alone as one family and one brand. We create products that make a difference in one community at a time, while being mindful of the one planet we all share. Every product that Hager offers is backed by a 167-year legacy of quality, reputation, and excellence.
- Standard Duty Commercial
- Non-Handed
- Grade 2 Passage Set With Withnell Lever
- No Exposed Mounting Screws
- Zinc Based Lever
Attributes
Ansi Function: F75 – Passage
Application: CM
Backset: 2-3/4″ Backset
Category: Mechanical Commercial Locksets
Clazz: HH
Color: Satin Chrome
Country of Origin: Mexico
Crossbore Size: 2-1/8″ Bore
Cylinder Type: Conventional Cylinder
Design: Withnell
Dimension: 3-11/32″ Rose; 4-17/32″ Lever Length; 2-21/32″ Projection
Door Range: 1-3/8″ to 2″
Door Thickness: 1-3/8″ to 2″
Finish: Satin Chrome
Finish Code: US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Passage
Grade: Grade 2
Handing: Not Handed
Hazardous Material: NO
Item Class : Withnell Lever Passage Cylindrical Lock # 000256
Item Type Keyword: Passage
Latch Faceplate Dimension: 1-1/8″ x 2-1/4″
Lever Knob Design: Withnell Lever
Leverknob Design: WTN – Withnell Lever
Limited Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Manufacturer Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Material: Zinc Lever, Wrought Brass Rose, and Steel Chassis
No Of Inners: 1
Number Of Inners: 1
Order_ Qty: 1
PO date: 2024-09-01
Product Dimension: 3-11/32″ Rose; 4-17/32″ Lever Length; 2-21/32″ Projection
Rose Escutcheon Design: Round Rose
Series: Hager 3500 Series
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Drive-In Spring Latch
Std Strike Height: 4-7/8 In.
Std Strike Number: 3935
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimension: 1-1/4″ x 4-7/8″
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing Type: UL/cUL Listed for all functions up to 3 Hours
Upc: 04135900256722
