Description

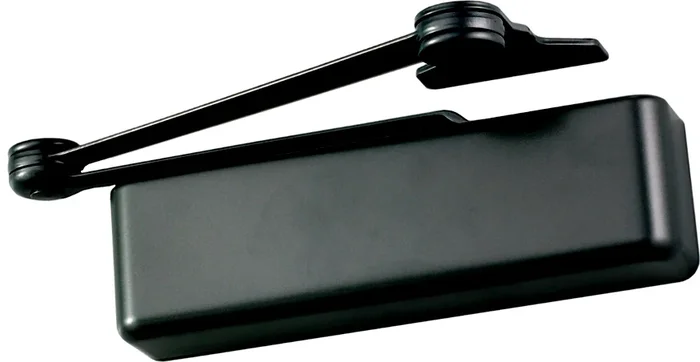

LCN 4040XP-EDA-GLBLK XP Heavy Duty Closer, Cast Iron, Adjustable Spring 1-6, Gloss Black
LCN Closers 4040XP-EDA-GLBLK XP Heavy Duty Closer delivers unmatched performance and reliability for high-use environments. This robust, cast iron surface-mounted door closer is designed to endure the rigors of daily operation, making it ideal for both commercial and residential applications. With an adjustable spring size ranging from 1 to 6, it accommodates various door weights and sizes, ensuring optimal functionality. Constructed from high-strength materials, the 4040XP features a double heat-treated steel pinion and a full complement bearing for superior wear resistance. The patented positive stop and regulation valve indicators provide precise adjustments, simplifying maintenance and installation. The peel-n-stick templates allow for quick, accurate mounting, while the LCN Green Dial takes the guesswork out of spring power adjustments, ensuring consistent performance. This closer is ANSI/BHMA A156.4 grade 1 rated and complies with ADA requirements, making it a reliable choice for any building project. The sleek gloss black powder coat finish not only enhances aesthetics but also guarantees durability against the elements. Backed by a 30-year limited warranty, the LCN 4040XP-EDA-GLBLK is built to last, providing peace of mind and lasting value for your investment.
XP Heavy Duty Closer, Cast Iron Surface Mount, EDA Extra Duty Arm, Adjustable Spring Size 1-6, Grade 1, TB/SRT Screw Pack, Plastic Cover, 693/GLBLK Gloss Black Powder Coat
Notice: The info below is not item specific.
The 4040XP series is LCN’s most popular door closer—and for good reason. This durable non-handed, surface-mounted heavy-duty closer, is designed for the most demanding high-use-and-abuse applications as well as for easy installation and maintenance. With new enhancements made to the 4040XP, installers and service technicians can have confidence in how to install and adjust the door closer properly—ultimately, maximizing the life of the product. It’s ANSI/BHMA A156.4 grade 1 rated and meets ADA reduced opening force requirements. It’s cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. The 4040XP series features include standard non-handed plastic cover, with optional plated finish available for cover, arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel arm, double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations. LCN peel-n-stick templates assure quick and accurate installation, and the LCN Green Dial takes the guesswork out of spring power adjustments.
Features:
- Tight tolerances in manufacturing for accuracy and precision
- Peel-n-stick template for quick and accurate installation
- LCN Green Dial to take the guesswork out of spring power adjustments
- Patent-pending positive stop to improve staking and prevent the screw from being backed out
- Patent-pending regulation valve indicators that add a visual reference for screw adjustment location
- Labeled regulation valves and diagram of door swing to make adjustments faster, easier and consistent
- Cast iron cylinder for rugged performance, longer life and maximum control
- Single-piece, heat-treated forged steel arms to withstand bending and breaking
- Heat-treated 1-1/2″ diameter piston for extra hardiness and strength
- Double heat-treated steel pinion with 11/16″ journal diameter for greater wear-resistance
- Full complement bearings with minimum 0.5″ height that wear more evenly and are less susceptible to leakage
- All-weather Liquid X fluid for consistent performance through every season, regardless of temperature changes
- Independent speed adjustments for greater door control
- Non-PRV (pressure relief valve) design to minimize risk of property damage, injury, increased maintenance and liability exposure
- Updated! Redesigned snap-fit cover with patent-pending retention fit
- Powder coat finish that lasts longer than spray lacquer
- 30-year warranty
- Universal non-handed design that enables it to fit more applications with a single product
- Full ranges of mount and arm options, including hinge pull side, push side top jamb and push side parallel arm
- Adjustable spring sizes 1-6
Specifications:
- Certifications: Grade 1 – ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA – buy American Act
- Body Construction:
- Patented positive stop
- Patented regulation valve indicators
- Independent speed adjustments
- QR code for instructions and support
- Cast iron body
- Full complement bearing
- 1-1⁄2″ diameter piston
- Double heat treated pinion journal
- Fluid: All weather liquid X fluid
- Handing: Non-handed
- Templating: Peel-n-Stick templates – 2-1⁄4″ x 5″ mounting hole pattern
- Size: Adjustable spring size 1-6, includes LCN Green Dial
- Cover:
- Redesigned snap-fit plastic cover(PC) with improved retention fit, standard
- Metal cover (MC), optional
- Fasteners: Self reaming and tapping screws (SRT)
- Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)
Optional Arms:
- 4040XP-3077: Regular Arm (REGARM)
- Non-handed
- Mounts pull side or top jamb with shallow reveal P4041 closer includes PA shoe, 4040XP-62PA required for parallel arm mounting
- 4040XP-3077L: Long Arm (LONG)
- Non-handed
- Includes long rod and shoe, 4040XP-79LR for top jamb mount
- Optional
- 4040XP-3077ELR: Extra Long Arm (XLONG)
- Non-handed
- Includes extra long rod and shoe, 4040XP-79ELR for top jamb mount with deep reveal
- Optional
- 4040XP-3049: Hold Open Arm (H)
- Non-handed
- Mounts pull side or top jamb with shallow reveal, hold open adjustable shoe
- 4040XP closer includes 4040XP-62PA shoe required for parallel arm mounting
- Optional
- 4040XP-3049L: Hold Open Long Arm (HLONG)
- Non-handed
- Includes long head and tube, 4040XP-3048L for top jamb mount
- Optional
- 4040XP-3077EDA: Extra Duty Arm (EDA)
- Non-handed
- Features forged, solid steel main and forearm for potentially abusive installations
- Optional
- 4040XP-3049EDA: Hold Open Extra Duty Arm (HEDA)
- Handed
- Parallel arm features forged, solid steel main and forearm for potentially abusive installations
- Hold open function is adjusted at the shoe
- Optional
- 4040XP-3077EDA/62G: Extra Duty Arm with 62G Thick Hub Shoe (EDAW62G)
- Non-handed
- Features forged, solid steel main and forearm for potentially abusive installations
- 62G shoe provides additional blade stop clearance
- Optional
- 4040XP-3049EDA/62G: Hold Open Extra Duty arm with 62G Thick Hub Shoe (HEDA62G)
- Handed
- Features forged, solid steel main and forearm for potentially abusive installations
- 62G shoe provides additional blade stop clearance; hold open function is adjusted at the shoe
- Optional
- 4040XP-3077CNS: Extra Duty Arm (EDA)
- Non-handed
- Features solid forged steel main arm and forearm with stop in soffit shoe.
- Optional
- 4040XP-3049CNS: Hold Open Cush-n-Stop Arm (HCUSH)
- Non-handed
- Hold open function with templated stop/hold open points
- Handle controls hold open function
- Optional
- 4040XP-3077SCNS: Spring Cush-n-Stop Arm (SCUSH)
- Non-handed
- For potentially abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
- Optional
- 4040XP-3049SCNS: Spring Hold Open Cush-n-Stop Arm (SHCUSH)
- Non-handed
- For potentially abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
- Handle controls hold open function
- Optional
Finishes:
- 622 – Matte black
- 689 – Aluminum
- 690 – Statuary bronze
- 691 – Light bronze
- 693 – Gloss black
- 695 – Dark bronze
- 696 – Brass
Attributes
Alternate Codes: 4040XP-EDA-BLACK, 4040XPEDABLACK, 4040XP-EDA-GLBLK, 4040XPEDAGLBLK, LCN4040XPEDA 693, LCN4040XPEDA693, LCN4040XP-EDA-BLACK, LCN4040XPEDABLACK, LCN4040XPEDA BLK
Arm Function: Non-Hold Open
Arm Type: EDA Extra Duty
Category: Door Closers, Surface Mount Closers, Surface Mount Misc. Parts
Certifications: A156.4, ANSI, Buy American Act, UL 10C
Closer Type: Surface
Cover: Plastic
Cylinder Type: Standard
Door Application: Door Closers, Surface Mount Closers
Fasteners: TB Self Reaming & Tapping Screws
Finish Code: 693
Finish Color: Black, Black Powder Coat, Sprayed Black
Grade: Grade 1
Manufacturer: LCN Closers
Material: Cast Iron, Hardened, Steel
Mounting: Hinge (Pull Side), Parallel Arm (Push Side), Top jamb (Push Side)
Series: 4040XP
Spring Size: 1-6
