Description

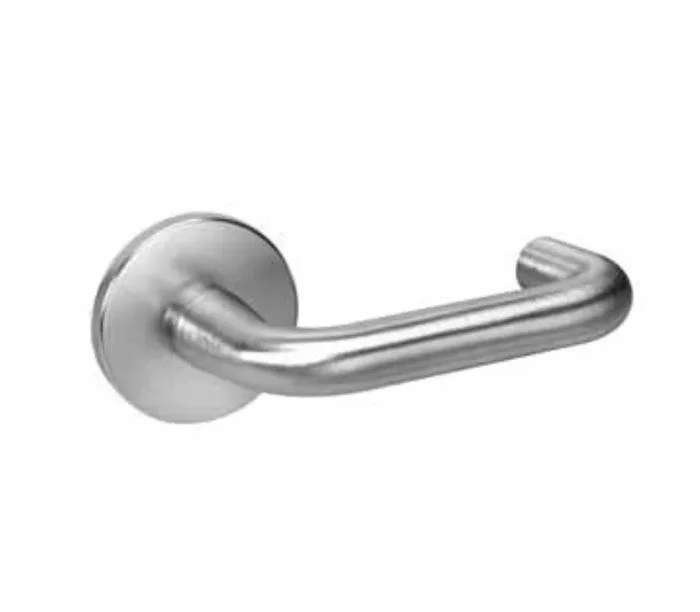

Yale CRR8809FL 626 TRIM PACK 8809 Trim Pack Only
Yale CRR8809FL 626 TRIM PACK 8809 Trim Pack Only is engineered for robust security and functionality in commercial environments. This trim pack, part of the renowned Yale 8800FL Series, features a classroom or office lock function and is designed to accommodate various cylinder types (09, 22, 32, 40, 47, 60, 61 & 67), ensuring versatility for different locking needs. The elegant Carmel lever and CO rose, finished in satin chromium plating, provide a modern aesthetic while maintaining the durability required in high-traffic areas. Installation is streamlined with quick lever handing, field reversible latchbolt, and a standard nonhanded strike, making it easy to adapt to various door configurations. The reinforced stainless steel deadbolt enhances security, complemented by heavy-duty, vandal-resistant trim and a certified ANSI/BHMA Grade 1 rating for reliability and longevity. This trim pack is UL/cUL fire rated up to 3 hours, ensuring safety compliance, and it supports door thickness from 1-3/4″ to 3-1/4″. With a 10-year mechanical warranty and a variety of 17 finishes available, the Yale CRR8809FL 626 Trim Pack is a smart investment for any commercial application, combining style and security effortlessly.
8809 Trim Pack Only
Yale 8800FL Series Mortise Trim Pack, Classroom or Office Lock Function, Cylinder x Turn (09, 22, 32, 40, 47, 60, 61 & 67), Carmel Lever, CO Rose, Satin Chromium Plated Finish
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA:Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL:UL/cUL fire rated up to 3 hours
- Windstorm:Certified (refer to local codes)
- Mechanism:Stainless steel
- Backset:2-3/4″
- Latchbolt:3/4″ stainless steel throw
- Door Thickness:1-3/4″ standard, to 3-1/4″ thick doors to order
- Fronts:Bevel front, free-floating to adjust from flat to standard bevel of 1/8″ in 2″
- Cylinders:Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility:Field reversible handing
- Strikes:1-1/4″ curved lip for 1-3/4″ door standard; other lip lengths to special order; all reversible
- Finishes:Available in 17 finishes
- Warranty:10 year mechanical
Attributes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Function: 09-Classroom or Office Lock
Grade: Grade 1
Handing: Non Handed
Installation: Commercial
Leverknob Design: CR – Carmel Lever
Pack Qty: 1
Roseescutcheon Design: CO Rose
Series: Yale 8800 Series Mortise Locks
Subtype: Trim Kits & Packs
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 2023 Yale Commercial Price Book (effective 4.17.2023)
- 8800 Series Handing Instructions
- 8800 Series Mortise Lock – Environmental Product Declaration (EPD)
- 8800 Series Mortise Lock Installation Instructions
- 8800 Series Parts Manual
- 8800 Series Upgrade Solutions Sell Sheet
- 8800-ITS Mortise Lockset Installation Instructions
- Yale 8800 Series Mortise Lock Catalog
- Yale 8800 Series Mortise Lock with Status Indicators Sell Sheet
- Yale 8800 Series Mortise Locks Cut Sheet
- Yale Commercial Finishes Chart
- Yale Competitor Indicator Kits Catalog
- Yale Reflections Catalog
