Description

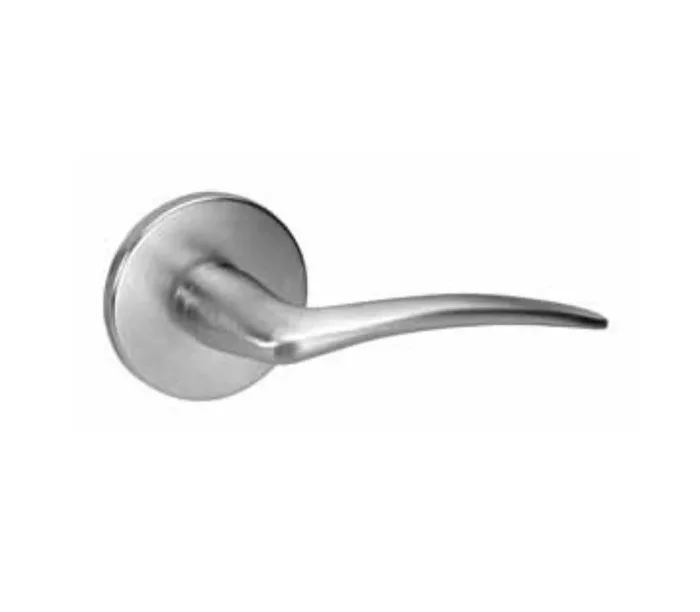

Yale ARR8807FL 625 LH Mortise Lock for Entrance
Yale ARR8807FL 625 LH Entrance Mortise Lock combines strength and reliability, making it an ideal choice for commercial settings. This Grade 1 office entry mortise lock features the elegant Arcadia Lever and a CO Rose design, ensuring both style and functionality. Its durable construction includes a reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim, all certified under ANSI/BHMA Grade 1, guaranteeing exceptional performance and longevity. Installation is straightforward with quick lever handing and a field-reversible latchbolt, accommodating various door configurations. The lock is designed for standard 1-3/4″ door thickness, with an adjustable bevel front that adapts from flat to a standard bevel of 1/8″ in 2″. It comes with a conventional brass cylinder, complete with two keys, and optional 7-pin configurations for added security. This Yale mortise lock also meets UL/cUL fire ratings for up to 3 hours, ensuring safety in emergencies. With a bolt projection of 3/4″ and compatibility with various strike lengths, this lock is versatile for any installation. Available in a polished silver finish and backed by a 10-year mechanical warranty, the Yale ARR8807FL is a robust solution for securing entrance doors in commercial applications.
Entrance Mortise Lock
Grade 1 Office Entry Mortise Lock, Arcadia Lever, CO Rose, Conventional Cylinder, Bright Chromium Plated Finish, Left-Handed
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA:Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL:UL/cUL fire rated up to 3 hours
- Windstorm:Certified (refer to local codes)
- Mechanism:Stainless steel
- Backset:2-3/4″
- Latchbolt:3/4″ stainless steel throw
- Door Thickness:1-3/4″ standard, to 3-1/4″ thick doors to order
- Fronts:Bevel front, free-floating to adjust from flat to standard bevel of 1/8″ in 2″
- Cylinders:Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility:Field reversible handing
- Strikes:1-1/4″ curved lip for 1-3/4″ door standard; other lip lengths to special order; all reversible
- Finishes:Available in 17 finishes
- Warranty:10 year mechanical
Attributes
Ansi: F04
Ansi Function: F04 – Entry/Office
Base Material: Brass or Bronze
Bolt Projection: 3/4″
Commercial Residential: Commercial
Cylinder Length: 1-1/8″
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 07-Entry Lock
Grade: Grade 1
Handing: Left-Handed
Installation: Commercial
Leverknob Design: AR – Arcadia Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Pack Qty: 1
Pins: 6
Roseescutcheon Design: CO Rose
Series: Yale 8800 Series Mortise Locks
Ship Weight: 6 lbs.
Std Keyway: Para
Std Latch Backset Dim: 2-3/4″
Std Strike Height: 4-7/8″
Std Strike Number: 2815
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 2023 Yale Commercial Price Book (effective 4.17.2023)
- 8800 Series Handing Instructions
- 8800 Series Mortise Lock – Environmental Product Declaration (EPD)
- 8800 Series Mortise Lock Installation Instructions
- 8800 Series Parts Manual
- 8800 Series Upgrade Solutions Sell Sheet
- 8800-ITS Mortise Lockset Installation Instructions
- Yale 8800 Series Mortise Lock Catalog
- Yale 8800 Series Mortise Lock with Status Indicators Sell Sheet
- Yale 8800 Series Mortise Locks Cut Sheet
- Yale Commercial Finishes Chart
- Yale Competitor Indicator Kits Catalog
- Yale Reflections Catalog
