Description

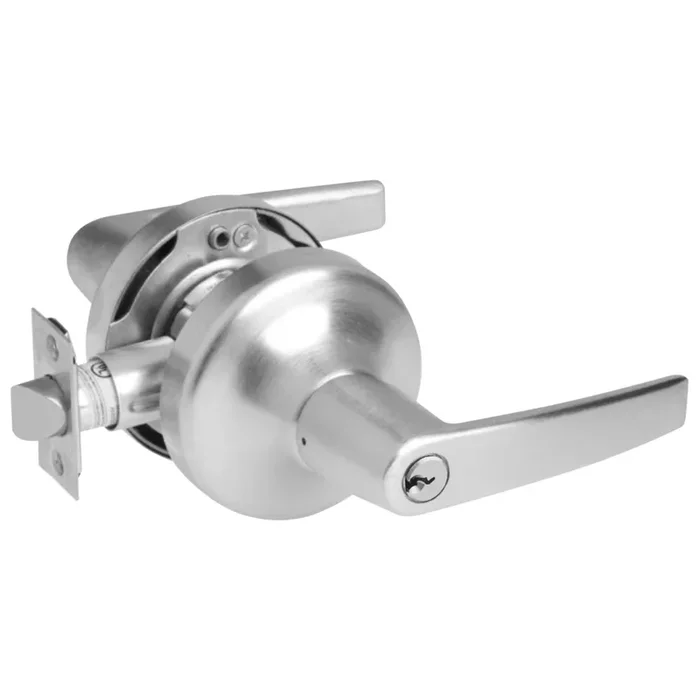

Yale MO5307LN 626 Grade 2 Entry/Office Lock
Yale MO5307LN 626 Grade 2 Entry/Office Lock offers a robust and reliable entry solution for commercial settings. This Grade 2 cylindrical lockset features a sleek Monroe lever design, finished in a stunning satin chrome that complements various architectural styles. Engineered for enhanced security, the lock boasts a vandal-resistant Free Wheeling lever mechanism and is designed with through-bolting to ensure a secure fit that minimizes shaking and rattling. The MO5307LN is versatile, accommodating adjustable door thicknesses from 1-3/4″ to 2″, with special orders available for thinner doors. With a selection of three lever designs and an impressive twelve finish options, customizing the look of your entryway is effortless. This lockset supports 19 mechanical functions and four electrified options, making it adaptable to numerous applications. Constructed with a conventional cylinder, the lock includes a lifetime warranty against lever sag and spring breakage, ensuring longevity and performance. Designed for easy installation, the MO5307LN is compliant with ANSI/BHMA standards and UL listed for safety. Elevate your security with Yale’s MO5307LN Grade 2 Entry/Office Lock, ideal for demanding environments where reliability matters.
Grade 2 Entry/Office Lock
Grade 2 Entry Cylindrical Lock, Monroe Lever, Conventional Cylinder, Satin Chrome Finish, Non-handed
This revolutionary Grade 2 lockset boasts design features such as a vandal resistant Free Wheeling lever mechanism and adjustable door thickness that makes installation a breeze. Through bolting gives the 5300LN a secure fit that resists shaking and rattling. With three lever designs and twelve different finishes, you have the ability to match any decor.
The 5300LN Series is a revolutionary Grade 2 cylindrical lockset.
The 5300LN Series features a vandal-resistant Free Wheeling lever mechanism. It also has through-bolting, which gives a secure fit that resists shaking and rattling.
• Free Wheeling lever mechanism for increased vandal resistance
• 13 finish options
• 3 lever designs
• 19 mechanical functions, 4 electrified
• Adjustable door thickness: (Patent #6,131,970) – Preset at factory for 1-3/4″ (44mm) to 2″ (51mm) – Special order available for 1-3/8″ (35mm), 2-1/4″ (57mm)
• 3-1/2″ rose covers ANSI/BHMA door prep A156.115 “Spider Cut Out”
• Through-bolts solidly through the door, providing greater stability
• Wide range of Yale® 6-pin cylinder options: – Standard, Interchangeable core, Security and Yale® KeyMark® protected keyway cylinders (see page 10)
• Competitive keying options: – Standard cylinders with Schlage® C and Sargent® LA keyways – Levers which accept interchangeable core cylinders by Best®, Schlage®, Medeco® and ASSA® – Levers which accept standard cylinders by Schlage®
• Lifetime warranty against lever sag and lever spring breakage
Attributes
Ansi: F109
Ansi Function: F109 – Entry/Office
Base Material: Brass, Bronze
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 10″
Box Height Fraction: 3-3/4″
Box Width Fraction: 7-1/2″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4″ to 2″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 07-Entry Lock
Function Family: Entrance/Office
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 7/8″
Lever Knob: Lever
Lever Knob Design Name: Monroe
Leverknob Design: MO – Monroe Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 5 Year Warranty
Lock Face Size: 1-1/8″ x 2-1/4″
Manufacturer Function: Entry
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
Of Keys: 2
Origin: United States
Pack Height: 3.75″
Pack Length: 10″
Pack Qty: 1
Pack Volume: 281.25 in³
Pack Width: 7.5″
Pins: 6
Product Height: 3.75″
Product Length: 10″
Product Width: 7.5″
Projection: 3-1/2″
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2″ Rose Diameter
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: 5300LN Grade 2 Cylindrical Lever Locks
Ship Weight: 4.8 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 380AN
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 2, UL Listed
Unit of Measure: Each
Resources
- 5300LN Grade 2 Cylindrical Lever Locks Cut Sheet
- 5300LN Grade 2 or 4700LN Grade 1 Cylindrical Lever Locks Installation Instructions
- 5300LN Series Grade 2 Cylindrical Lever Locks Catalog
- Electrified Wiring Instructions 5390LN/5391LN and 4790LN/4791LN
