Description

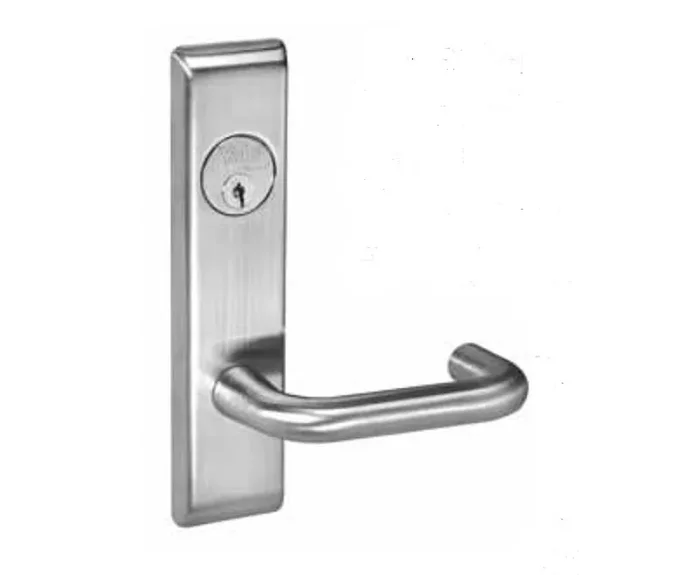

Yale CRCN8805FL 625 LC Storeroom Mortise Lock
Yale CRCN8805FL 625 LC Storeroom Mortise Lock combines robust security with sleek design, making it an excellent choice for commercial applications. This Grade 1 storeroom mortise lock features a stylish Carmel lever and a CN escutcheon, finished in a bright chromium plating that enhances both durability and aesthetics. Tailored for easy installation, the lock boasts quick lever handing and a field-reversible latchbolt, allowing for versatile use across various door types. Its ANSI/BHMA Grade 1 certification ensures long-lasting performance, while the reinforced stainless steel deadbolt and heavy-duty, vandal-resistant trim provide an added layer of security. Notably, it is UL/cUL fire rated for up to three hours, meeting stringent safety requirements. Designed for doors ranging from 1-3/4″ to 3-1/4″ in thickness, the CRCN8805FL accommodates a standard backset of 2-3/4″. With a 3/4″ stainless steel throw for the latchbolt and a 1-1/4″ curved lip strike, it offers reliable operation in high-traffic environments. Additionally, this mortise lock is backed by a 10-year mechanical warranty, reflecting Yale’s commitment to quality and customer satisfaction.
Storeroom Mortise Lock
Grade 1 Storeroom Mortise Lock, Carmel Lever, CN Escutcheon, Less Cylinder, Bright Chromium Plated Finish
Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Lock installation is easy with quick lever handing, field reversible latchbolt and standard nonhanded strike.
The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
- ANSI/BHMA:Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL:UL/cUL fire rated up to 3 hours
- Windstorm:Certified (refer to local codes)
- Mechanism:Stainless steel
- Backset:2-3/4″
- Latchbolt:3/4″ stainless steel throw
- Door Thickness:1-3/4″ standard, to 3-1/4″ thick doors to order
- Fronts:Bevel front, free-floating to adjust from flat to standard bevel of 1/8″ in 2″
- Cylinders:Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
- Reversibility:Field reversible handing
- Strikes:1-1/4″ curved lip for 1-3/4″ door standard; other lip lengths to special order; all reversible
- Finishes:Available in 17 finishes
- Warranty:10 year mechanical
Attributes
Ansi Function: F07 – Storeroom/Exit
Base Material: Brass or Bronze
Bolt Projection: 3/4″
Commercial Residential: Commercial
Cylinder Type: Less Cylinder
Design A: CR Lever
Design B: CN Escutcheon
Door Thickness: 1-3/4″
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 05-Storeroom or Closet Lock
Grade: Grade 1
Installation: Commercial
Leverknob Design: CR – Carmel Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Pack Qty: 1
Roseescutcheon Design: CN Escutcheon
Series: Yale 8800 Series Mortise Locks
Std Latch Backset Dim: 2-3/4″
Std Strike Height: 4-7/8″
Std Strike Number: 2815
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 2023 Yale Commercial Price Book (effective 4.17.2023)
- 8800 Series Handing Instructions
- 8800 Series Mortise Lock – Environmental Product Declaration (EPD)
- 8800 Series Mortise Lock Installation Instructions
- 8800 Series Parts Manual
- 8800 Series Upgrade Solutions Sell Sheet
- 8800-ITS Mortise Lockset Installation Instructions
- Yale 8800 Series Mortise Lock Catalog
- Yale 8800 Series Mortise Lock with Status Indicators Sell Sheet
- Yale 8800 Series Mortise Locks Cut Sheet
- Yale Commercial Finishes Chart
- Yale Competitor Indicator Kits Catalog
- Yale Reflections Catalog
