Description

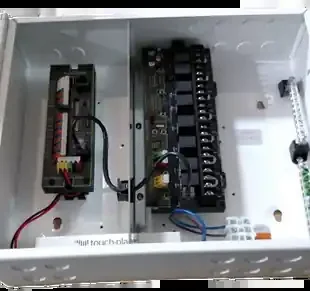

Updating your old fifties, sixties or seventies low voltage Touchplate panel? Upgrade to the streamlined Touch Plate ZoneZ Universal. The new 8-relay board is specifically designed to retrofit all previous Touch-Plate relay panels installed since 1946 until the 1990’s. These updated panels are fully assembled before delivery and include new transformers, relays and power supplies. New features include LED pilot light compatibility, Master “all ON” or “all OFF” relay function, as well as electronic stuck switch protection. Compatible with all contact closure Touch Plate switch stations, and can be used to retrofit 3-wire low voltage systems such as GE, Remcon and Bryant.
These made-in-America relay boards are designed to adapt to most previous panel locations, which will save on costs for labor and material. Easy to install and includes a 1 yr warranty and 3 yrs free phone support. These 8-relay boards are built per order, please allow 2-3 weeks lead time. These MADE TO ORDER relay panels cannot be returned or exchanged.
Features
- eight 20 amp 2-wire electronically held relays
- LED control for stations with LEDs
- Load types: Incandescent, Fluorescent, LED, magnetic low voltage, electronic low voltage
- each relay can support up to 1920 watts
- includes 120 volt built in transformer
- power: 120VAC or 277VAC primary voltage
- environment: 0-140 degrees F (0-60 degrees C) non-condensing atmosphere
- 12″ long x 14.25″ wide x 3.75″ deep, estimated – please confirm current size if mounting in tight area
- basic & master on/off control per 8 relays
- electronic stuck switch protection
- UL recognized relays
- dimmers can be substituted for relays
- future upgradeable to smart control/timing with purchase of Time-keeper panel and re-programming of control board
- compatible with all 5000, Classic, Genesis, Ultra, Eclipse, Mystique and Royal Touch Plate series
- Nema 1 enclosure with hinge and key lock; # 16 U.S. gauge steel; indoors only
- includes 1 year warranty & 3 years phone support
- made per order in the USA, 2-3 week lead time
- previous part number ZONEZ-LT-L-71-6RP or ZNZLL-20120-12RP
