Description
Usually ships in 24-48 hours
More Information
| Manufacturer |
Jet |
| Condition |
New |
| UPC |
66275598812 |
| Features |

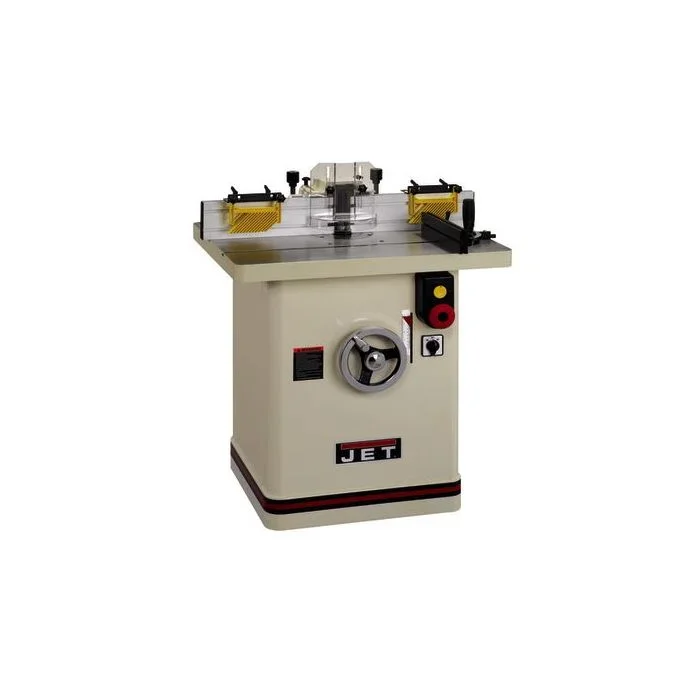

- Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
- Powerful 3HP, 1Ph motor with magnetic controls
- Poly-V-belt transfers maximum power to the spindle
- Large 26-3/4 inch X 32-1/4 inch precision ground cast iron table provides a durable work area, predrilled for power feeder
- Starting pins for irregular shaping
- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Reversible spindle speeds for diverse shaping jobs
- 4 inch Dust port built into fence for convenient hookup to any dust collection system
- Spindle lock for safe and easy cutter set-up
|
| PDFs |
|
| Horsepower |
3 HP |
| Motor Phase |
1 Ph |
| Motor Voltage |
230 V |
| Amperage |
14 Amps |
| Prewired Voltage |
230 V |
| Spindle Speed (RPM) |
4000/6000/8000/10000 RPM |
| Maximum Spindle Diameter |
1-1/4″ |
| Spindle Size Under Nut |
4″ |
| Spindle Travel |
4″ |
| Reversible |
Yes |
| Maximum Diameter Cutter Above Table |
7-1/2″ |
| Maximum Diameter Cutter Below Table |
6″ |
| Table Opening Diameter |
6-19/64″ |
| Table Inserts |
2″ |
| Table Insert Opening Diameter |
2-9/16″, 4-5/16″ |
| Table Size Length |
32-1/4″ |
| Table Size Width |
26-3/4″ |
| Table T-Slot |
3/4 x 3/8″ |
| Table Height from Floor |
33-1/4″ |
| Fence Size Length |
16″ |
| Fence Size Height |
4-3/4″ |
| Fence Travel (Major and Minor) |
4.1″ |
| Dust Port Outside Diameter |
4″ |
| Dust Collection Minimum CFM Required |
600 CFM |
| Electrical Controls |
Yes |
